Sliding Door Hardware, Hawa Clipo 16 HM IF, set For wood sliding doors, for door weights up to 35 lbs, for door heights up to 55 1/8", For 1 Door Plastic Rollers: Plastic Axis: Steel

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

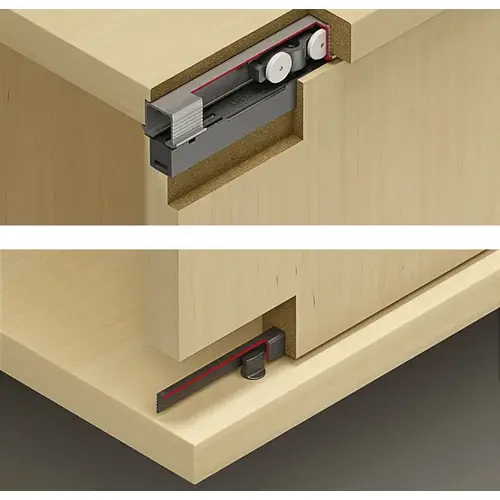

Hafele 405.82.220 Sliding Door Hardware, Hawa Clipo 16 HM IF, set For wood sliding doors, for door weights up to 35 lbs, for door heights up to 55 1/8", For 1 Door Plastic Rollers: Plastic Axis: Steel

Item #: 405.82.220 by Hafele

See reviewsSee reviews
See reviews summary
HURRY! Low in stock

$103.64

/kit
SAVE UP TO 10.36
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 4 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Volume Pricing

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Installation

Guide for press fitting into a drill hole, Screw-on housing, Running gear without tools (quick fixing system)

For Door Height

≤1,400 mm

For Door Thickness

≤19 mm

For Door Width

≤1,000 mm

Cabinet version

with narrow doors

For door material

aluminum frame

Number of doors per system max.

1 to 2

Model series

Clipo

Running position

Top

Number of rollers

4

Soft closing mechanism

with clip-in door stopper

Adjustment facility

Height adjustment: -1 – 2 mm, Height +2/-1 mm

Supplied with

2 Running gears 2 housing unites 2 track stoppers 1 floor guides

For door thickness max.

3/4"

For door weight

≤16 kg

Order reference

Please order running and guide tracks separately. Soft closing mechanism on one side is possible from pitch length of min. 260 mm, both sides from 460 mm. Please order soft closing mechanism separately.

Set

Set without tracks

Area of application

For straight doors

Door width max.

39 3/8"

Running gear guided by

Friction bearing

Door stopper

Top clip-in door stopper, for sliding into running track

Door weight max.

35 lbs.

Material/finish

Plastic Rollers: Plastic Axis: Steel

Door height min.

55 1/8"

Type of opening

linear

Height Adjustment

1/8"

Number of Doors

1

Max Door Weight

35.00 lb

Height Adjustable From

RequiredProducts

true

Product Overview
Sliding Door Hardware, Hawa Clipo 16 HM IF, set For wood sliding doors, for door weights up to 35 lbs, for door heights up to 55 1/8", For 1 Door Required Products: 405.87.042;405.87.082;405.87.083;405.87.092;405.87.093;405.90.942;405.90.032;405.90.033;405.98.517 Optional Accessories: P-00875130;P-00875131;P-00875132
