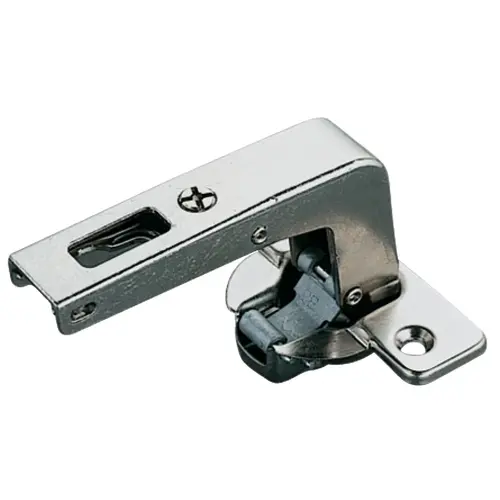

Hafele 329.35.510 Blind Corner Concealed Hinge, Salice, 110 degree Opening Angle, Nickel-Plated cup fixing: For screw fixing, Self-close, press fitting, model C2R6N99AM Nickel plated
Item #: 329.35.510 by Hafele
See reviewsSee reviews
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See How Watch Now
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
Material
Cup: Steel, Hinge arm: Zinc alloy
Model
C2R6N99AM
Installation
Door on cabinet with slide-on system A or quick fixing system SM
Opening Angle
110°
Functionality
With soft closing mechanism
For Door Thickness
18 – 26 mm
For door material
wood
Model series
200
Cup fixing
For mounting in drilled hole
Door mounting
blind corner application
Adjustment facility
Side adjustment <4.5 mm, Height adjustment ±2 mm, Depth adjustment with Duomatic A mounting plates +2.8 mm, with Duomatic SM mounting plates from -0.5 to +2.8 mm
Cup drilling depth
11 mm
Order reference
suitable for all Duomatic A and Duomatic SM mounting plates
Crank type
Straight
Area of application
Blind corner
Door processing for assembly
cup drilling
For door thickness min.
5/8"
Color/Finish
Nickel plated
Cup drilling diameter
35 mm
Concealed hinge version
blind corner application
Version
with soft closing mechanism
Drilling pattern
45/9.5
Product Overview
Blind Corner Concealed Hinge, Salice, 110° Opening Angle, Nickel-Plated cup fixing: For screw fixing, Self-close, press fitting, model C2R6N99AM
