Features
- Constructed with a zinc alloy cup and steel hinge arm, featuring a nickel plated finish for cabinet and furniture applications.
- Designed for a 135 degree opening angle, suitable for wood doors and flaps in frameless cabinet constructions.
- Fits side panel thicknesses of 16 to 20 mm and door thicknesses ranging from 16 to 22 mm.
- Features a concealed miter hinge design that remains hidden from the outside when the door is closed.
- Includes a 3-dimensional adjustment facility to allow for precise door alignment during installation.
- Requires a 35 mm cup drilling diameter, 13.5 mm cup drilling depth, and a 52/5.5 drilling pattern for screw fixing.
- Installation requires a 2 mm door gap all around and a 3 mm edge chamfer for side panel thicknesses of 20 mm.
Material
Cup: Zinc alloy, Hinge arm: Steel
Installation
For screw fixing
Opening Angle
135°
For Door Thickness
≥ 16 – ≤ 22 mm
For door material
wood
Model series
GS 45
Cup fixing
for screw fixing
Door mounting
miter
Adjustment facility
3-dimensional
Cup drilling depth
13.5 mm
Area of application
Doors and flaps
Side panel thickness
16 – 20 mm
Drilling pattern
52/5.5
Door processing for assembly
cup drilling
Color/Finish
Nickel plated
Cup drilling diameter
35 mm
Cup screw distance
52 mm
Concealed hinge version
miter
Installation reference
Provide 2 mm door gap all round. The edge must be chamfered by 3 mm from a side panel thickness of 20 mm.
Cabinet Type
Frameless
Product Type
Miter Door Hinge
Opening angle value list
135°
Base-handle material formula
Cup: Zinc alloy, Hinge arm: Steel
ArticleType
NORMAL
Adjustment facility formula
3-dimensional
For door thickness formula
16 – 22 mm
Installation note
Provide 2 mm door gap all round. The edge must be chamfered by 3 mm from a side panel thickness of 20 mm.
Colour finish refinement
Cup: nickel plated
Product Overview

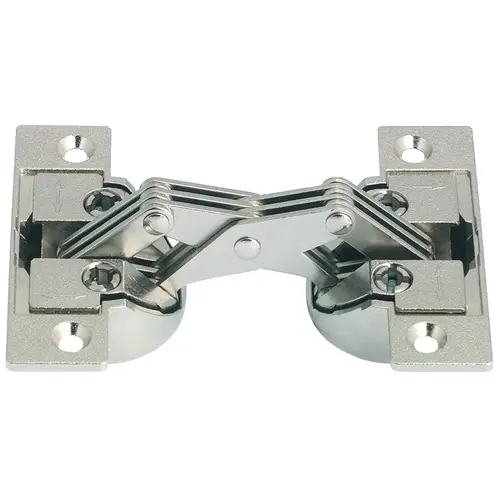

The miter hinge, gs 45/90, 135 degree opening angle for doors and flaps, gs 45, opening angle 135 degree nickel plated is a specialized hinge for wood doors and flaps in frameless cabinets. this concealed hinge is designed for miter joints, remaining hidden from the outside when the door is closed. it is constructed with a zinc alloy cup and a steel hinge arm. the hinge features a 135 degree opening angle and is suitable for side panel thicknesses of 16 to 20 mm and door thicknesses of 16 to 22 mm. installation requires cup drilling with a 35 mm diameter and a 13.5 mm depth, using a 52/5.5 drilling pattern and 52 mm cup screw distance. it includes a 3-dimensional adjustment facility for precise alignment. a 2 mm door gap is required all around, and the edge must be chamfered by 3 mm for side panel thicknesses of 20 mm. the hinge is designed for screw fixing.
