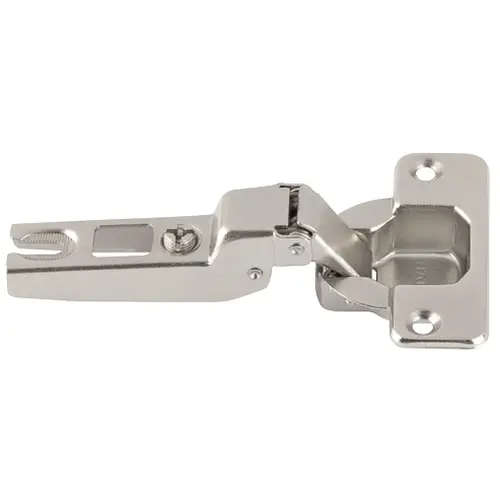

Concealed Cup Hinge, Hafele Metalla A 110 degree , half overlay mounting/twin mounting For standard application, 8 mm crank, 45/9.5, nickel plated Nickel plated

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

Hafele 311.90.521 Concealed Cup Hinge, Hafele Metalla A 110 degree , half overlay mounting/twin mounting For standard application, 8 mm crank, 45/9.5, nickel plated Nickel plated

Item #: 311.90.521 by Hafele

Item Discontinued!
See reviewsSee reviews
See reviews summary

The item is currently out of stock and it may or may not be restocked
OUT OF STOCK

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Material

Steel

Model

110°

Installation

Door on cabinet with slide-on system A

Opening Angle

110°

Functionality

With automatic closing spring

For door material

wood

Model series

Häfele Metalla 300

Door mounting

Half overlay mounting/twin mounting

Adjustment facility

Side adjustment ±2.5 mm, Height adjustment ±2 mm, Depth adjustment ±2 mm, Height adjustment via mounting plate

Cup drilling depth

12 mm

Crank type

Cranked

Area of application

For wooden doors

Door processing for assembly

cup drilling

Color/Finish

Nickel plated

Cup drilling diameter

35 mm

Concealed hinge version

Half overlay mounting/twin mounting

Version

With automatic closing spring

Drilling pattern

45/9.5

Function

With automatic closing spring

Model Number

CAC0303

RequiredProducts

true

Product Overview
Concealed Cup Hinge, Häfele Metalla A 110°, half overlay mounting/twin mounting For standard application, 8 mm crank, 45/9.5, nickel plated
