30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
WARNING: This Product May Contain Chemicals Known to the State of California to Cause Cancer or Reproductive Harm. To Learn More Visit P65Warnings.ca.gov
Features
- Constructed from zinc alloy with a nickel plated finish for use in cabinet and furniture hardware systems.
- Features a 78 degree opening angle designed for corner cabinet doors to provide access to storage areas.
- Requires a 35 mm cup drilling diameter and 11 mm cup drilling depth for standard cabinet door assembly.
- Compatible with door thicknesses ranging from 15 to 24 mm for versatile furniture and closet applications.
- Supports a maximum door weight of 176 lbs and a maximum door width of 1,500 mm for large cabinet doors.
- Designed for cabinet and furniture hardware applications, providing a functional hinge for corner storage.
- Includes a 1 mm product thickness and is intended for door processing using standard cup drilling methods.
Material
Zinc Alloy
Opening Angle
78°
For Door Thickness
15 – 24 mm
Cup drilling depth
11 mm
Door processing for assembly
cup drilling
Cup drilling diameter
35 mm
Function
Cabinet Hinge
Maximum Door Weight
176 lbs.
Maximum Door Width
1,500 mm
Maximum Working Load Capacity
88-220 lbs.
Product Thickness
1mm
Product Type
Closet Hardware
Series
343 Series
Manufacturer Parent
Hafele America Co
Sub-Series
EPCO-830-12-PC
Color/Finish
Nickel plated
Opening angle value list
78°
Base-handle material formula
Zinc alloy
ArticleType
NORMAL
Colour finish refinement
Nickel plated
Product Overview

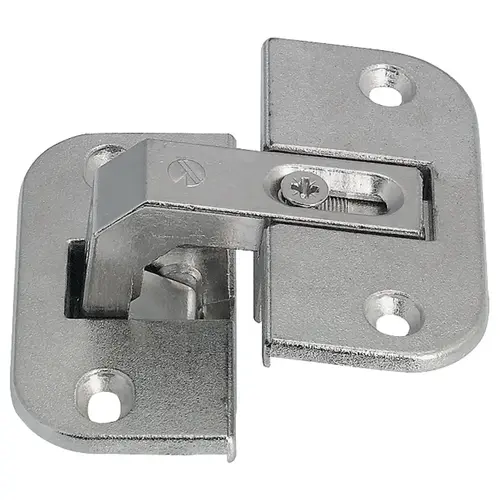

The pie-cut corner, 78 degree opening angle cabinet hinge is designed for corner cabinet applications, providing a functional solution for furniture doors. constructed from zinc alloy with a nickel plated finish, this hinge is suitable for various cabinetry setups. it features a 78 degree opening angle, allowing for access to corner storage spaces. the hinge requires a 35 mm cup drilling diameter and an 11 mm cup drilling depth for assembly. it is compatible with door thicknesses ranging from 15 to 24 mm. this hinge is part of the 343 series and is designed for use in closet hardware and furniture applications. it supports a maximum door weight of 176 lbs and a maximum door width of 1,500 mm, with a maximum working load capacity between 88 and 220 lbs. the product thickness is 1 mm. this hinge is intended for standard door processing using cup drilling methods.
