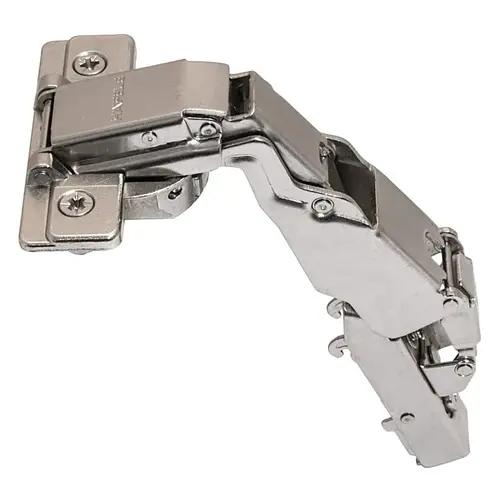

Hafele 315.04.510 Wide Angle Clip-On Hinge, Opening Angle 165 degree , Full Overlay Self-Close

Item #: 315.04.510 by Hafele

See reviewsSee reviews
In Stock

$4.78

/each
SAVE UP TO 0.48

Buying in bulk

QUICK SHIPPING*Usually ships in 1 business day
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See How Watch Now
Large Order Quote

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Material

Steel

Opening Angle

165°

For Door Thickness

14 – 26 mm

Door mounting

full overlay

Cup drilling depth

11.5 mm

Crank type

Straight

For min. panel thickness

Side: 5/8"

Distance to cup

≥ 3 – ≤ 7 mm

Door processing for assembly

cup drilling

For door thickness min.

9/16"

Cup drilling diameter

35 mm

Concealed hinge version

full overlay

Drilling pattern

45/9.5

Product Overview
Wide Angle Clip-On Hinge, Opening Angle 165 degree, Full Overlay Self-Close
