Concealed Hinge, Salice, 165 degree Opening Angle, Self Close, 1/2" Overlay Dowel mounted, model C2RFD99

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

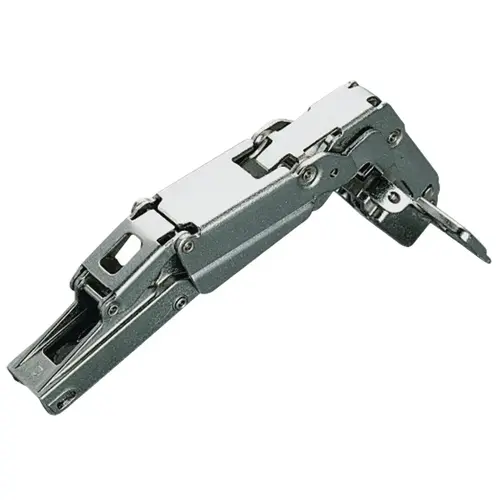

Hafele 329.07.662 Concealed Hinge, Salice, 165 degree Opening Angle, Self Close, 1/2" Overlay Dowel mounted, model C2RFD99

Item #: 329.07.662 by Hafele

Brand: Hafele

UPC #: 4000934431488

See reviewsSee reviews
See reviews summary
In Stock

$9.36

10.90 /each
SAVE UP TO 0.94
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 26 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Custom Quote

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
WARNING: This Product May Contain Chemicals Known to the State of California to Cause Cancer or Reproductive Harm. To Learn More Visit P65Warnings.ca.gov
Features
  • 0-door offset for use with internal pull outs or extending trays

Material

Cup: Zinc alloy, Hinge arm: Steel

Model

C2RFD99

Opening Angle

165°

For Door Thickness

16 – 28 mm

Model series

200

Door mounting

half overlay

Adjustment facility

Side adjustment -1.5 – 4.5 mm, Height adjustment ±2 mm, Depth adjustment -0.5 – 2.8 mm

Cup drilling depth

11 mm

Crank type

Cranked

Distance to cup

≥ 3 – ≤ 8 mm

Area of application

For wood doors

Side panel thickness min.

5/8"

Door processing for assembly

cup drilling

For door thickness min.

5/8"

Cup drilling diameter

35 mm

Concealed hinge version

half overlay

Drilling pattern

45/9.5

Model Number

C2RFD99

Opening angle value list

165°

Drilling pattern type value list

45/9.5

Base-handle material formula

Cup: Zinc alloy, Hinge arm: Steel

Model supplier name number

C2RFD99

ArticleType

NORMAL

Adjustment facility formula

Side adjustment -1.5/+4.5 mm, Height adjustment ±2 mm, Depth adjustment -0.5/+2.8 mm

Mounting version furniture hinge

half overlay

Product Overview
Concealed Hinge, Salice, 165 degree Opening Angle, Self Close, 1/2" Overlay Dowel mounted, model C2RFD99
