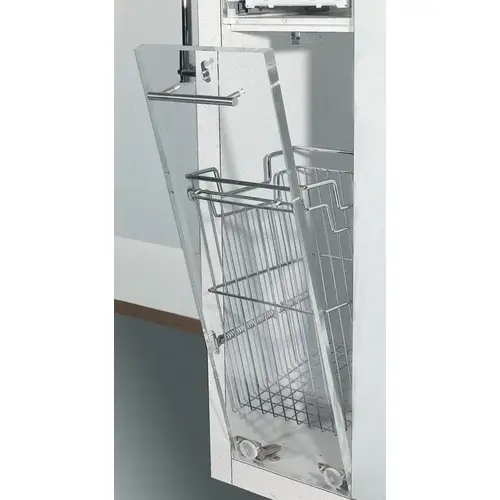

Flap Ex Flap Hinge, for Laundry Hampers Particularly suitable for installation in bathroom and laboratory cabinets with front flaps, White plastic Zinc plated, sleeve and screw-on bearing: White

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

Hafele 365.52.708 Flap Ex Flap Hinge, for Laundry Hampers Particularly suitable for installation in bathroom and laboratory cabinets with front flaps, White plastic Zinc plated, sleeve and screw-on bearing: White

Item #: 365.52.708 by Hafele

See reviewsSee reviews
See reviews summary
HURRY! Low in stock

$29.24

/each
SAVE UP TO 2.92
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 1 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Volume Pricing

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features
  • Completely assembled
  • The door is opened under spring tension by approximately 27° by applying pressure directly to the door
  • When the door is closed, the flap is pushed back into the cabinet and secured by the Mini Latch
  • The hinge with the coil springs is designed to support a particle board front with the maximum dimensions 590 mm (23 1/4”) high, 400 mm (15 3/4”) wide and 19 mm (3/4”) thick and a maximum weight when full of 5 kg (11 lbs).

Material

Steel Sleeve and screw-on bearing: Plastic

Dimensions

Front dim. for 1 Flap-Ex max. 400 x 590 x 19 mm (W x H x D)

Installation

For installation of the front flap, 2 cup hinges and a Mini Latch are required

Opening Angle

27 °

For lid height

Model series

Flap-Ex

Supplied with

1 Angular bracket 1 Round rod with sleeve 2 Washers 2 Spiral springs 1 Screw-on bearing

Cover color/finish

Nickel plated

Order reference

Please order concealed hinges and Mini‐Latch catch separately.

Version

with spring bearing in opening and closing direction for max. filling weight of 5 kg

Area of application

particularly suitable for front flaps in bathroom furniture and laboratory cabinets, Front dim. for 1 Flap-Ex max. 400 x 590 x 19 mm (W x H x D)

Flap fitting type

Tilting fitting

Installation reference

Assembly Screw angular bracket to front panel. Screw screw-on bearing to cabinet side panel. Push round bar between the two spiral springs into the screw-on bearing. ① Spiral spring, length 126 mm ② Spiral spring, length 90 mm ③ Angular bracket ④ Washer ⑤ Screw-on bearing ⑥ Washer ⑦ Floor ⑧ Side panel ⑨ Front flap

Color/Finish

Zinc plated, sleeve and screw-on bearing: White

Mounting

Screw the angle bracket to front panel and screw-mount bearing to cabinet side panel; see mounting drawing on the right. Push round rod into the screw-on bearing between the two coil springs.

Suitable For

Front flaps with max. dim. 400 x 590 x 119 mm (W x H x D) for 1 Flap-Ex fitting, for filler weight of max. 5 kg

RequiredProducts

true

Product Overview
Required Products: 245.54.701;245.54.707 Optional Accessories: P-00871848;P-00866766;P-00915804;P-00915802;P-00900057
