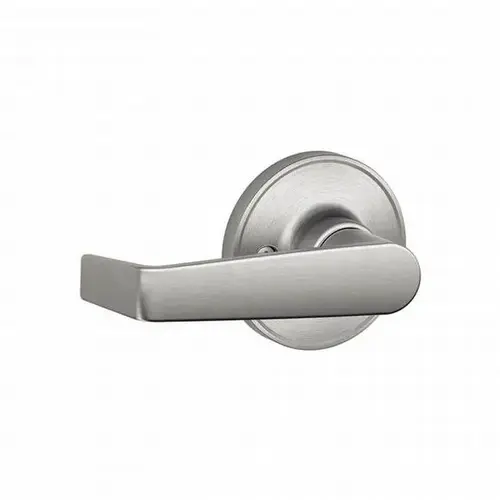

Schlage Residential J170 MAR 630 J170 Marin Dummy Lever Lock, Satin Stainless Steel

Item #: J170 MAR 630 by Schlage Residential

UPC #: 043156778829

See reviewsSee reviews
See reviews summary
In Stock

$7.98

/each
SAVE UP TO 0.80
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 626 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Volume Pricing

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features
  • Half Dummy Function - Dummy Trim for One Side of Door
  • ADA Compliant: Yes
  • Applications: Residential single- and multi-family doors
  • ANSI/BHMA A156.36 Grade 3
  • Reversible Handing
  • Backset: Universal latches and deadbolts fit 2-3/8" (60mm) or 2-3/4" (70mm) backsets.
  • Certifications: ANSI A156.2, 1996, Series 4000 Grade 2
  • Includes All Mounting Hardware for Easy Installation
  • Lifetime Mechanical & 5 Year Finish Warranty
  • Door thickness range: 1-3/8" to 1-3/4" (35mm-44mm) standard
  • UL Listed: Locks for up to three-hour fire doors available

Finish

Satin Stainless Steel

Function

170-Non Turning

Series

J Series

Design

Marin

Handing

Reversible

Color Code

630(US32D)

Finish Description

Satin Stainless Steel

Lever Style

MAR-Marin

Rose/Escutcheon Trim

Round Rose

Product Type

Cylindrical Lock

Grade

ANSI/BHMA Grade 3

Box Length

5.4300

Box Width

2.6400

Box Height

2.4400

Application

Residential Single and Multi Family Doors

Warranty

Lifetime Mechanical Warranty and 5-Year Finish Warranty

ADA Compliant

No

Finish Family

Stainless Steel

Standards

ANSI/BHMA A156.2-2011 Commercial Grade 3; ADA Compliant

Function Description

Non-turning pull trim

Function Family

Dummy

Features

Guaranteed to fit on standard pre-drilled doors; Lever design pairs well with transitional styles and crisp, minimalist designs; Self-aligning screw holes make installation easy and hassle-free

Door Thickness

1-3/8" to 1-3/4"

Manufacturer Parent

Allegion

Lever Style Family

Straight With Return Lever

Sub-Series

RL_Lever_Locksets_schlage_residential_156

Dimension

3-7/8" Lever Length and 2-7/16" Projection with 2-5/8" Diameter Rose

Material

Stainless Steel

Manufacturer Warranty

Limited Lifetime Mechanical and 5 Year Finish Warranty

Rose/Escutcheon Design

Round Rose

Hazardous Material

No

Finish code

630

Lever Knob Design

Marin Lever

No of inners

1

Product Overview
J SeriesLevers

From classic looks that never go out of style to bold contemporary designs, Schlage's levers and door handles fit and accentuate virtually any décor. Available in a variety of functions, you can choose the perfect look for every room in your house - it's the easiest way to give your entire home a style upgrade.

Available Functions: J10/F75 - Hall & Closet*:
  • Both levers always unlocked
J40/F77 - Bed & Bath*:
  • Turn-button locking. Can be opened from outside by turning outside turn mechanism
  • From interior, turning inside turn-button releases inside lever
J40P - Bed & Bath (Pushbutton)*:
  • Push-button locking. Can be opened from outside with small circular tool
  • Turning inside knob/lever releases button
  • ADA Compliant
J170 - Non-turning*:
  • Non-turning trim for one side of door
  • Used for door pull or as matching inactive trim
J54/F82 - Keyed Entry**:
  • Unlocked by key from outside whenouter knob is locked by turn-button in inside knob
  • Inside knob is locked and unlocked by turn-button
  • *Non-keyed Locks
  • **Keyed Locks
Latches & Strikes: Keyed Latches - Dead Latches:
  • 16-255 - Triple Option (Round, Square, Drive-in) - Standard
  • 16-061 - UL Listed, Square Corner
Non Keyed - Spring Latches:
  • 16-254 - Dual Option (Round, Drive-in) - Standard
  • 16-070 - Triple Option Spring Latch for handlesets
Strikes:
  • 10-101 - Round Corner Full Lip - Standard
Specifications: Certification:
  • ANSI/BHMA A156 .2-2011 Commercial Grade 3
Latch:
  • Dual Option: 1" x 2 1/4", 1/4" round faceplate and drive-in
  • Triple Option: 1" x 2 1/4", square corner and round corner faceplate, drive-in latch (J54)
Strike:
  • 1 5/8" x 2 1/4", radius corner, full lip, no box
Backset:
  • Adjustable for 2 3/8" or 2 3/4"
Cylinder:
  • 5-pin, C keyway, keyed alike (KA4)
Door Range:
  • 1 3/8" - 1 3/4"
Keys:
  • Two brass cut keys per lock, 5-pin, C section
Finishes: 605:
  • Bright Brass (US3)
609:
  • Antique Brass (US5)
619:
  • Satin Nickel (US15)
620:
  • Antique Pewter (US15A)
622:
  • Matte Black (US19)
625:
  • Bright Chrome (US26)
626:
  • Satin Chrome (US26D)
630:
  • Satin Stainless Steel (US32D)
716:
  • Aged Bronze
  • *Non-standard finishes are not available
  • Full-color swatch examples available on inside Levers tab
