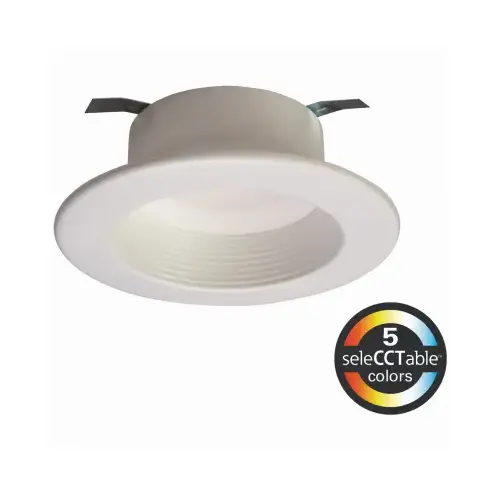

Halo RL4069S1EWHR Retrofit Recessed Lighting Rl4 Series, Metal Material, 4" Aperture Width, 600 Lumens, Matte White Baffle Finish
Item #: RL4069S1EWHR by COOPER LIGHTING LLC
Brand: Halo
UPC #: 080083818488
See reviewsSee reviews
QTY
–
+
+ Add to Wishlist
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
WARNING: This Product May Contain Chemicals Known to the State of California to Cause Cancer or Reproductive Harm. To Learn More Visit P65Warnings.ca.gov
Features
- Constructed from metal with a matte white baffle finish, this 4" recessed downlight is designed for indoor and outdoor applications.
- Features a 4" aperture width and compact dimensions of 5.12" diameter and 2.43" height for standard ceiling installations.
- Compatible with 4" screwbase and dedicated LED housings, suitable for both new construction and remodeling projects.
- Integrated LED provides 600 lumens at 8 W, with 5 selectable color temperatures from 2700K to 5000K and 90 CRI.
- Dimmable down to 5% using phase dimming, with an average life of 70,000 hours and a power factor greater than 0.90.
- Rated for dry, damp, and wet locations, making it suitable for use in showers and protected ceiling areas.
- Includes gasket, mounting brackets, and wiring connectors for hardwired installation in IC-rated ceiling environments.
Assembled Height (in.)
2.43
Collection Name
N/A
Assembled Width (in.)
5.12
Included
Gasket(s), Mounting Brackets, Wiring Connectors
Standard Color Family
White
Fixture Material
Metal
Assembled Depth (in.)
5.12
Compatible Bulb Type
Integrated LED
Certifications and Listings
cUL Listed, UL Listed
Trim Type
Baffle
Pack Size
1
Features
Air Tight, Dimmable, Retrofit
Damp/Wet Rating
Damp Rated, Dry Rated, Wet Rated
Indoor/Outdoor
Indoor, Outdoor
Warranty
5 Year
Manufacturer Warranty
5 Year
Height
5.31
Finish
Matte White Baffle
AMPS
0.075 amps
Volts
120 V
Watts
8 W
Color
White
UL Listed
Yes
Number in Package
1 pk
IC Rated
Yes
Packaging Type
Boxed
Aperture Width
4"
Defective Code
A
Each Weight
0.520 LB
Energy Star Certified
Yes
Hardwired or Plug In
Hardwired
Hazardous Material
No
Maximum Color Temperature
5000 kelvin
Power Factor
Greater Than 0.90
Returnable
Yes
Sub Brand
RL4 Series
Suitable for New Construction
Yes
Suitable for Remodeling
Yes
Trim Included
Yes
Product Type
Retrofit Kit
UNSPSC
39111505
Length
5.31
Width
2.75
Brand
HALO
Country Origin Code
CN
Average Life
70000 hr
Dimmable
Yes
Lumens
600 Lumens
Color Rendering Index (CRI)
90
Lamp Base
E26 Edison Screw
Mounting Type
Recessed
Current Rating
0.075 to 0.0875 A
Wattage Rating
9 W
Dimensions
5.12 in Dia
Nomenclature
RL4069S1EWHR TRIM RCS 600L 4IN
Material
Metal
Color Temperature
5000 K
ECCN
EAR99
New Construction or Remodel
Retrofit
Width (in)
5.12
Length (in)
5.12
Height (in)
2.43
Weight (lb)
1
Certification
cUL/UL Listed
IC/Non-IC
IC
Recessed Size (In.)
4
Velocity
D
Size (W x H x D)
5.35×5.65×2.85
Product Overview
The Retrofit Recessed Lighting RL4 Series is a 4" LED downlight designed for recessed mounting in both new construction and remodeling applications. Constructed from metal, this fixture features a matte white baffle trim and is suitable for indoor and outdoor use in dry, damp, and wet locations, including showers and protected ceilings. The unit operates at 120 V and 8 W, providing up to 600 lumens with a 90 CRI. It offers 5 selectable color temperatures ranging from 2700K to 5000K. The integrated LED lamp base is an E26 Edison screw, and the fixture is dimmable down to 5% using phase dimming. With an average life of 70,000 hours, this IC-rated fixture includes a gasket, mounting brackets, and wiring connectors for installation. The dimensions are 5.12" in diameter with an assembled height of 2.43". It is cUL and UL listed, Energy Star certified, and air-tite, ensuring compliance with standard electrical requirements.
