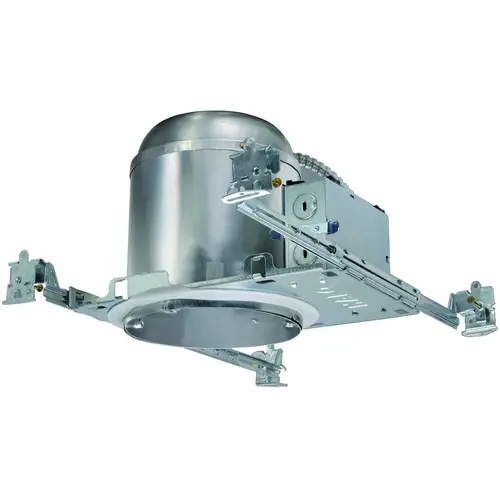

Halo H750ICAT Light Housing, 6 in Dia Recessed Can, Aluminum Silver
Item #: H750ICAT by COOPER LIGHTING LLC
UPC #: 623961872655
See reviewsSee reviews
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
- Airtite
- Quick connect wiring connectors included in junction box
- Title 24, IECC, WSEC, and NYSECCC compliant
- Die-formed housing and plaster frame
- Housing may be removed from plaster frame for junction box access
- Damp/wet location listed
- Got Nail pass-n-thru bar hangers
- Galvanized steel frame, housing adjusts in plaster frame to accommodate up to 1 in ceiling thickness, regressed locking screw for securing hanger bars and cutouts included for easily crimping hanger bars in position
- Positioned to accommodate straight conduit runs
- 6" dedicated LED housing
- Seven 1/2 in trade size conduit knockouts with true pryout slots
- Designed for use in insulated ceilings
- Designed for use with Halo LED modules
- Slide-N-Side™ wire traps allow non-metallic sheathed cable to be installed without tools and without removing knockouts
- Integral t-bar clip
- Allows wiring connections to be made outside the junction box
- Simply insert the cable directly into the trap after connections are made
- New Construction
- Energy Star rated
- Pre-installed nail easily installs in regular lumber, engineered lumber and laminated beams
- Slide-n-side junction box
Trim Included
No
Energy Star Certified
Yes
Returnable
Yes
UL Listed
Yes
Defective Code
A
Color
Silver
Number in Package
6 pk
Suitable for Remodeling
No
Watts
20 W
Volts
120 V
Aperture Width
6"
Packaging Type
Boxed
IC Rated
Yes
Casing Material
Aluminum
Product Type
Recessed Lighting Housing
CSA Listed
Yes
Suitable for New Construction
Yes
Each Weight
2.100 LB
Velocity
D
Hazardous Material
No
Height
7.50
Length
13.25
Width
14.75
Brand
HALO
Country Origin Code
MX
Mounting Type
Ceiling
Material
Aluminum
Dimensions
10.5 in L x 7.4 in W x 7 in H
Application
For general lighting
Ceiling Type
Insulated
Nomenclature
H750ICAT 6IN LED HOUSING-NEW
Recessed Can Diameter
6"
Ceiling Opening Size
6-1/2"
Warranty
1 yr.
Bulbs Included
NO
New Construction or Remodel
New Construction
Width (in)
6.5
Length (in)
14.5
Height (in)
7.5
Weight (lb)
2.25
Certification
Title 24/UL Listed
IC/Non-IC
IC
Recessed Size (In.)
6
Product Overview
FIXTURE REC H7 LED AIR-TGT 6IN
Specifications:
Specifications:
Includes: Cut-Outs Wiring Connectors
Suitable for: Halo H7 Collection 600 and 900 Series LED Modules
The H750ICAT is a dedicated LED new construction housing for use with halo H7 collection 600 Series and 900 Series LED modules. The H750ICAT is designed for insulated ceilings and can be in direct contact with ceiling insulation. This AIR-TITE housing design prevents airflow between attic and living areas and saves on both heating and air conditioning costs. The H750ICAT connector system provides high efficacy code compliance when used with Halo H7 collection LED modules.
