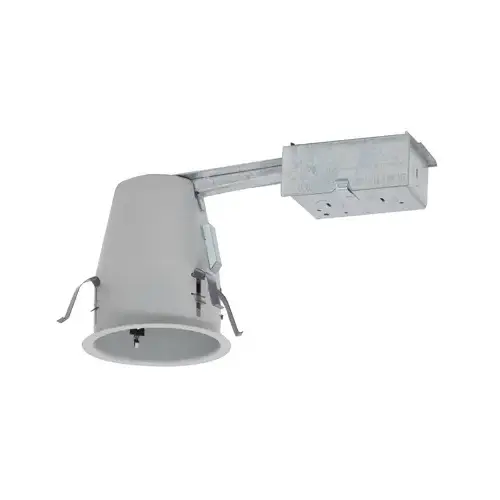

Halo E4RTATSB Recessed Housing, 4 in Dia Recessed Can, Steel White
Item #: E4RTATSB by COOPER LIGHTING LLC
UPC #: 80083751501
See reviewsSee reviews
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See How Watch Now
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
- Housing features an adjustable socket bracket, and is suitable for residential or commercial applications
- Remodel housing design installs from below the finished ceiling
- Remodel springs accommodate 1/2 in and 5/8 in ceiling material
- adjustable porcelain socket
- 4" remodel recessed housing
- AIR-TITE™ exclusive housing gasket
- in non-insulated ceilings with Air-Tite code compliant construction
- Hinged junction box with Slide-N-Side
- Socket bracket adjusts lamp to various trim styles and designs
- Installation
- 5-1/2" height fits 2" x 6" joist construction
- AIR-TITE™ gasket pre-installed on remodel flange
- Four remodel clips secure housing and accommodates 1/2 and 5/8 in ceiling material
- 7 junction box conduit knockouts
- Must keep all sides of housing 3 inches from insulation
- Seven conduit knockouts are uniform 1/2 in size with true pryout slots
- Four pry-outs with integral strain relief simplify NM non-metallic sheathed cable installation
- Must keep all sides of housing 3"ches from insulation
- pre-installed bar hangers fit up to 24" spacing
- Adjustable position bracket with porcelain socket and nickel-plated brass screw shell provides flexibility in lamp positioning
- Remodel Non-IC Air-Tite housing optimized and listed for EISA compliant tungsten-halogen lamps, CFL and LED bulbs as well as incandescent
- air tight
- not for use with insulated ceilings
- t-bar clips for drop ceilings
- ul/cul listed for damp locations
- compatible with 4" Halo trims
Returnable
Yes
UL Listed
Yes
Defective Code
A
Color
White
May be retrofit with compatible Halo LED lighting
May be retrofit with compatible Halo LED lighting systems
Number in Package
6 pk
Suitable for Remodeling
Yes
Sub Brand
E-Series
Volts
120 V
Aperture Width
4.8"
Packaging Type
Boxed
IC Rated
No
Casing Material
Aluminum
Product Type
Recessed Lighting Housing
Suitable for New Construction
No
Each Weight
0.720 LB
Velocity
D
Hazardous Material
No
Trim Included
No
Height
5.00
Length
12.00
Width
6.00
Brand
HALO
ECCN
EAR99
Country Origin Code
MX
Mounting Type
Recessed
Material
Steel
Dimensions
11.5 in L x 4.62 in W x 5 in H
Application
For commercial and residential applications
Ceiling Type
Non-Insulated
Nomenclature
E4RTATSB HOUSING RMDL 120V 4IN
Recessed Can Diameter
4"
Ceiling Opening Size
4-1/4"
Product Overview
HOUSING RMDL NON-IC 120V 4IN
Specifications:
Specifications:
Includes: (3) Push Wire Nuts (3) Wire Connectors Clear Caps
Suitable for: Halo LED Lighting Systems
The E4RTATSB is a compact and efficient recessed remodel housing optimized and listed for EISA compliant tungsten-Halogen lamps, as well as Incandescent, CFL and LED lamps. Housing is suitable for residential or light commercial applications. For installation in insulated ceilings and non-insulated ceilings with airtight code compliant construction. Use with a variety of trims and finishes to create different lighting effects or to match any decor. May be retrofit with compatible HaloLED lighting systems.
