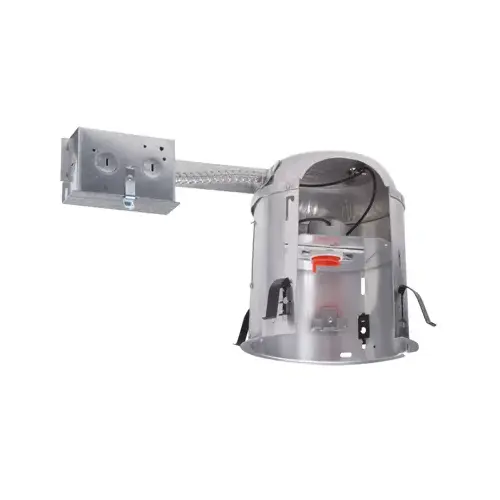

Halo E7RICAT Recessed Housing, 6 in Dia Recessed Can, Aluminum White
Item #: E7RICAT by COOPER LIGHTING LLC
UPC #: 80083737543
See reviewsSee reviews
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See How Watch Now
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
- 6" Recessed housing for remodel applications
- Remodel housing design installs from below the finished ceiling
- Exclusive remodel speed clamps securely lock from 3/8 to 2 in ceilings
- Air tight; rated for insulated and non-insulated ceilings
- rated for insulated and non-insulated ceilings
- AIR-TITE™ exclusive housing gasket
- Hinged junction box with Slide-N-Side
- All-Nail bar hangers with preinstalled nail and integral T-grid clip
- Socket bracket adjusts lamp to various trim styles and designs
- Housing features a precision rolled interlocking collar which maintains aperture geometry for greater assurance of installation results
- Compliant with tungsten-halogen lamps as well as incandescent, CFL and LED lamps
- cULus listed for damp and wet locations
- Integral AIR-TITE™ gasket for code required gasket between fixture and finished ceiling - seals aperture without need for additional caulk
- Shipped with socket overspray protector installed
- Hanger bars feature Pass-N-Thru tool-less shortening
- Exclusive two integral speed clamps securely lock housing to ceiling, accommodating 3/8 to 2 in ceiling materials
- Use screwdriver or power driver to set clamps
- Medium Base (E26) housing
- Quick connect push-in wire nuts included
Trim Included
No
Energy Star Certified
No
Returnable
Yes
UL Listed
Yes
Defective Code
A
Color
White
Number in Package
6 pk
Suitable for Remodeling
Yes
Aperture Width
6-1/4"
Packaging Type
Boxed
IC Rated
Yes
Casing Material
Aluminum
Product Type
Recessed Lighting Housing
Suitable for New Construction
No
Each Weight
1.950 LB
Velocity
X
Hazardous Material
No
Alternative UPC
080083737550
Height
15.00
Length
18.18
Width
10.38
Brand
HALO
ECCN
EAR99
Country Origin Code
MX
Mounting Type
Recessed
Material
Aluminum
Dimensions
10.5 in L x 7 in W x 7.06 in H
Application
For commercial and residential applications
Ceiling Type
Insulated
Nomenclature
E7RICAT HOUSING IC REMODEL 6IN
Recessed Can Diameter
6"
Ceiling Opening Size
6-1/4"
Product Overview
HOUSING IC REMODEL 6IN
Specifications:
Specifications:
Suitable for: Halo LED Lighting Systems
Includes: (2) Speed Clamps (2) Non-Metallic (NM) Wire Traps (3) Push Wire Nut (4) 1/2 in Pry-Outs Clear Caps
The E7RICAT is a compact and efficient recessed remodel housing optimized and listed for EISA compliant tungsten-Halogen lamps, as well as Incandescent, CFL and LED lamps. Housing is suitable for residential or light commercial applications. For installation in insulated ceilings and non-insulated ceilings with airtight code compliant construction. Use with a variety of trims and finishes to create different lighting effects or to match any decor. May be retrofit with compatible HaloLED lighting systems.
