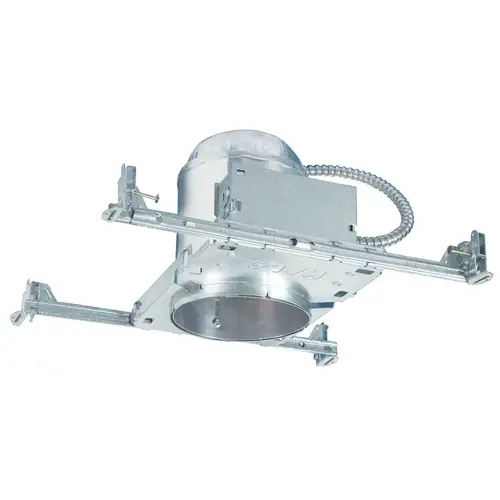

Halo H5ICAT-XCP6 Light Housing, 5 in Dia Recessed Can, Aluminum - pack of 6
Item #: H5ICAT-XCP6 by COOPER LIGHTING LLC
See reviewsSee reviews
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
- Quick connect wiring connectors included in junction box
- Die-formed housing and plaster frame
- Housing may be removed from plaster frame for junction box access
- Sealed and gasketed for AIR-TITE™™ ready installation
- Designed for insulated ceilings in direct contact with insulation
- Housing adjusts in plaster frame to accommodate up to 1-3/8 in ceiling thickness
- Rigid socket plate adjusts and locks without tools for various lamp sizes
- Socket plate and bracket may be removed when using socket supporting trims
- The housing can be removed from plaster frame to provide access to the junction box
- Q-channel bars feature an unique inverted q interlocking channel for rigidity and stability
Trim Included
No
Returnable
Yes
UL Listed
Yes
Defective Code
A
Color
White
Number in Package
6 pk
Suitable for Remodeling
No
Aperture Width
5"
Packaging Type
Boxed
IC Rated
Yes
Casing Material
Aluminum
Product Type
Recessed Lighting Housing
CSA Listed
Yes
Suitable for New Construction
Yes
Each Weight
2.300 LB
Velocity
X
Hazardous Material
No
Alternative UPC
662400602675
Height
14.70
Length
7.50
Width
13.00
ECCN
EAR99
Country Origin Code
CN
Recessed Can Diameter
5"
Mounting Type
Recessed
Application
For light commercial and residential applications
Dimensions
10-1/2 in L x 7-1/4 in W x 7 in H
Nomenclature
H5ICAT AIRTITE IC HOUSING 5IN
Ceiling Type
Insulated
Material
Aluminum
Ceiling Opening Size
5-1/2"
Product Overview
FIXTURE RECESS IC AIR-TGT 5IN
Specifications:
Specifications:
Includes: Ceiling Contact Gasket Cut-Outs Locking Screw Overspray Protector Pre-installed Nail Slide-N-Side Connectors Wiring Nut
The Halo H5 Series is designed to accommodate smaller sized PAR20 and PAR30 halogen lamps. The wide variety of trims available allows a number of different lighting effects to be created with one basic housing. The H5ICAT is designed for use in insulated ceiling applications. This is an Air-Tite housing and may be used to meet restricted air flow requirements.
