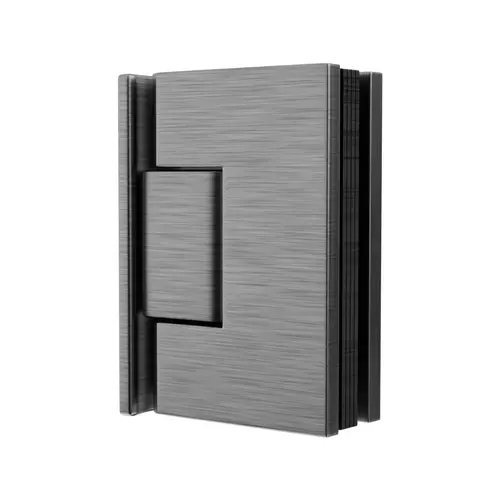

Brixwell HGTW0PBP Shower Door Wall Mount Hinge With Offset Back Plate 3-9/16" Height, Brushed Pewter Finish
Item #: HGTW0PBP by Brixwell
See reviewsSee reviews
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
- Each hinge supports 40 lbs; 2 hinges support 80 lbs and 3 hinges 120 lbs, making this door hinge dependable.
- Fits 3/8" and 1/2" glazing, making this shower hinge compatible with standard frameless glass shower doors.
- Made from solid forged brass with brushed pewter finish, this wall hinge is designed for bathroom and shower door use.
- Measures 3-9/16" high, with 2" fixed part width, 2-3/16" hinge part width, and 3/16" plate thickness.
- Supports door widths up to 30" with 2 hinges and 36" with 3, making this frameless hinge versatile for enclosures.
- Mouse ear design and square edge profile provide precise alignment of this hinge plate.
- Includes stainless steel clamping screws, crosshead screw, and wrench, making this offset hinge installation-ready.
Height
3-9/16" (90mm)
Finish
Brushed Pewter
Hole Spacing
2-3/4" (70mm)
Mounting Type
Glass To Wall
Material
Solid Forged Brass
Glass Fabrication Required
Cutout
Glazing Thickness
3/8" and 1/2" (10 and 12mm)
Edge Profile
Square
Hardware Includes
Matching Finish SS Hex Clamping Screws and Wrench
Back Plate Height
3-9/16" (90mm)
Adjustable
No
Design Style
Mouse Ear Design
Plate Thickness
3/16" (5mm)
Max Door Width 3 Hinges
36" (914mm)
Cross Head Screw Included
Yes
Closing Feature
Self Closing From 25 Degrees
Self Centering Function
0 Degrees Return with Reversible 5 Degrees Pin
Fixed Part Width
2" (50mm)
Per Hinge Rating
40 lbs Per Hinge
Pins and Springs Material
Stainless Steel
Max Door Weight 3 Hinges
120 lbs
Max Door Width 2 Hinges
30" (762mm)
Hinge Part Width
2-3/16" (55mm)
Max Door Weight 2 Hinges
80 lbs
Product Overview
The Shower Door Wall Mount Hinge with Offset Back Plate is designed to support frameless shower doors with secure glass-to-wall installation. Made from solid forged brass with a brushed pewter finish, this hinge coordinates with other bathroom hardware and fittings, providing both strength and style. It is built to work with 3/8" and 1/2" (10 and 12mm) glass thickness, making it compatible with most frameless shower door panels. The offset back plate design allows flexible alignment during installation, especially in setups where walls are not perfectly flush. The hinge measures 3-9/16" in height, 2-3/16" hinge part width, and 2" fixed part width, with a plate thickness of 3/16" for a stable mount. This hinge includes stainless steel hex clamping screws, crosshead screws, and a wrench, providing all components needed for mounting. Built with a mouse ear design, it allows small adjustments during or after installation. It also features stainless steel pins and springs for reliable operation. The hinge is self-closing from 25 degree, making it practical for daily use while helping keep shower doors aligned. Its 0 degree return function with reversible 5 degree pin offers flexibility to suit different bathroom layouts. Each hinge is rated at 40 lbs, with 2 hinges supporting doors up to 80 lbs and 30" width, and 3 hinges supporting up to 120 lbs and 36" width. The wall hinge is suitable for residential shower enclosures, glass partitions, and frameless bathroom doors where reliable hardware is needed.
