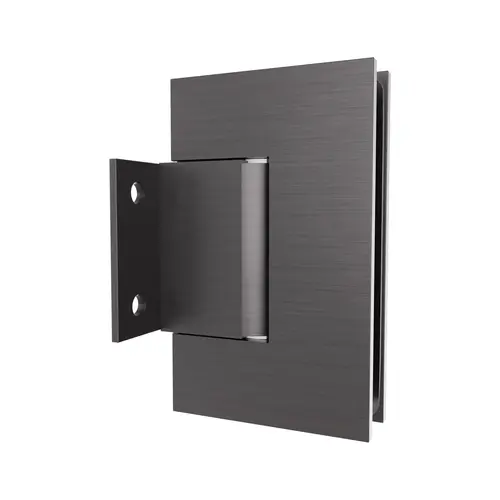

Brixwell HGTWBPClick To Copy Wall Mount Hinge With Short Back Plate 3/8" and 1/2" Glass Thickness Non Adjustable Type Brushed Pewter Finish

The Wall Mount Shower Door Hinge with Short Back Plate in Brushed Pewter finish is designed for frameless shower enclosures that require compact and secure wall-to-glass mounting. Constructed from solid forged brass with precision-machined stainless steel internal components, this hinge provides strength and consistent performance in glass hardware, shower hardware, and door hardware setups. Dual precision wound stainless steel return springs allow self-centering 0 degree return and self-closing from a 25 degree door angle, ensuring reliable operation in daily use. A reversible 5 degree pin option is included for positive closure when required. The short back plate design offers compact installation with a square edge profile and mouse ear design for secure alignment. Compatible with 3/8" (10mm) and 1/2" (12mm) tempered glass, this hinge requires fabrication cutouts. Each hinge is rated at 40 lbs; with two hinges supporting a maximum door weight of 80 lbs and a maximum width of 30", while three hinges can support up to 120 lbs with a maximum width of 36". Weight reference: 3/8" glass is 5.05 lbs/sf, and 1/2" glass is 6.40 lbs/sf. Dimensional details include overall height 3-9/16", width 2-3/16" , side depth 2" , thickness 3/16" per side, plate lip thickness 1/8", and back plate screw spacing of 1-3/8" horizontally and 1-1/2" vertically. Hardware includes stainless steel hex clamping screws, crosshead screws, and a hex wrench in matching finish.
