Adjustable Valencia Series 135° Glass to Glass Plate Hinges contain the same internal mechanism as our popular Designer Hinges, thus providing the same reliability and high performance. Adjustable solid forged brass shower door hinges with cambered face and rounded corners. The rounded corners of the hinge plates provide a nice blend in a soft décor. Valencia Hinges accommodate 3/8" (10 mm) to 1/2" (12 mm) thick tempered glass and are self-centering. Valencia Hinges are constructed of solid brass, and have stainless steel, pins, and springs to ensure long service life and reliable door closure.
DK Hardware Professional Tax Exempt? Net 30? - DK Net Terms
Roll over image to zoom in
Product Features
Product Overview
Related Videos
Reviews
Questions & Answers

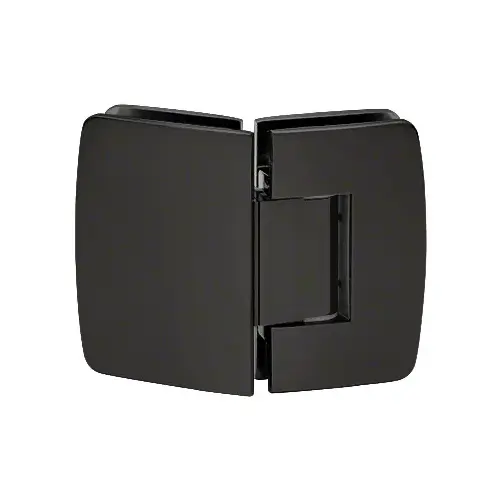

Brixwell HV135GTGA0B Oil Rubbed Bronze 135 degree Glass to Glass Adjustable Valencia Series Hinge
Item #: HV135GTGA0B by Brixwell
See reviewsSee reviews
Use Code: SAVEBIG2025 for Extra 10% Off
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
Finish
Oil Rubbed Bronze
Material
Brass
Mounting Style
Glass To Glass
Glass Fabrication Required
Cutout
Edge Profile
Cambered
Adjustable
Yes
Series
Valencia
Self-Centering
Yes
5 Degree Pre-Set
No
Glass To Glass Angle
135 degrees
Max Door Width - 3 Hinges (IN)
36
Max Door Weight-2 Hinges (Lbs)
80
Glazing Thickness
3/8, 1/2"
Max Door Width - 2 Hinges (IN)
30
Max Door Weight-3 Hinges (Lbs)
120
Product Overview
Adjustable Valencia Series 135° Glass to Glass Plate Hinges contain the same internal mechanism as our popular Designer Hinges, thus providing the same reliability and high performance. Adjustable solid forged brass shower door hinges with cambered face and rounded corners. The rounded corners of the hinge plates provide a nice blend in a soft décor. Valencia Hinges accommodate 3/8" (10 mm) to 1/2" (12 mm) thick tempered glass and are self-centering. Valencia Hinges are constructed of solid brass, and have stainless steel, pins, and springs to ensure long service life and reliable door closure.
