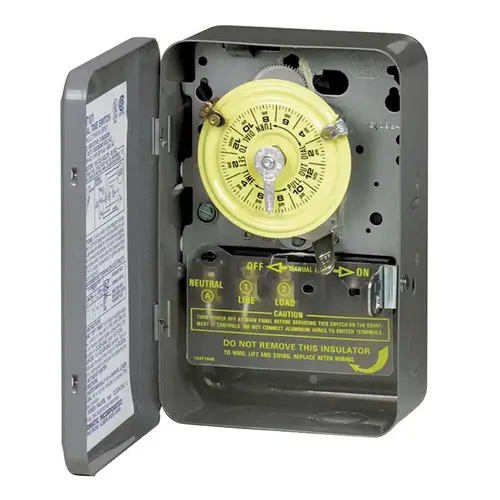

Intermatic T101D89 Mechanical Timer Switch, 40 A, 120 V, 3 W, 24 hr Time Setting, 12 On/Off Cycles Per Day Cycle
Item #: T101D89 by Intermatic, Inc
UPC #: 078275000018
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
- 1 hr. to 12 hr. on and off operation daily with minimum on and off times of 1 hour
- Direct 24 hrs control of most loads
- Up to 12 On/Off operations each day with minimum On/Off times of 1 hr
- Comes with metal case
- Highest HP ratings in the industry
- Manual override
- One on and one off tripper included
- Industrial, commercial and residential applications
- 40 A, 120 to 240 VAC, 60 Hz resistive, 40 A, 120 to 240 VAC, 60 Hz inductive, 16 A, 277 VAC, 60 Hz electronic ballast, 40 A, 120 to 240 VAC, 60 Hz tungsten
Voltage
120 volt
Mounting Type
Wall Mounted
Wattage
5000, 5000 watts
Warranty
1 year limited
Certifications
UL, CSA US
Amperage
40, 40 amp
Certifications and Listings
CSA-US Certified, cULus Listed
Cycle Period
24-Hour
Horsepower at 120V
2 HP
Indoor/Outdoor
Indoor
Maximum Time Setting
1380
Number of Poles
1
Product Depth (in.)
3.44
Product Height (in.)
7.88
Product Width (in.)
5.13
Standard Color Family
Gray
Timer Type
Mechanical
Features
Programmable
Pack Size
1
AMPS
40 amps
Volts
120 V
Watts
3 W
Application
Indoor/Outdoor Lighting, Signs, Filters, Electric Fences, Fans, Conveyors, Pool Heaters, Blowers and Pumps
Color
Gray
UL Listed
Yes
Number in Package
1 pk
Packaging Type
Boxed
Indoor or Outdoor
Indoor
CSA Listed
Yes
Cycles
24
Defective Code
A
Each Weight
2.700 LB
Hazardous Material
No
Returnable
Yes
Velocity
B
Product Type
Mechanical Time Switch
UNSPSC
39121523
Height
8.0"
Installation Type
Wall
Width
5-1/8"
Type
Heavy-Duty
Time Setting
24 hr
Frequency Rating
60 Hz
Current Rating
40 A
Temperature Rating
-40 to 130 deg F
HP Rating
2 hp
Depth
3-7/16"
Wattage Rating
3 W
Nomenclature
T101 40A-120V TIMER SWITCH
Cycle Time
12 On/Off Cycles Per Day
Number of Circuits
1
Heigh
7 7/8"
Switch Type
SPST
Motor
2 HP, 24 FLA 120 VAC, 60 Hz;5 HP, 28 FLA 240 VAC, 60 Hz
Electronic Ballast
16 A
Resistive Load Ratings Ranges
40 A, 120-240 VAC, 60 Hz
Wire Size Maximum
No. 8 AWG
Pilot Duty Load Ratings Ranges
1000 VA, 120-240 VAC, 60 Hz
Electronic Ballast Load Ratings Ranges
16 A, 120 VAC
Inductive
40 A, 240 VAC, 60 Hz; 40 A, 208 VAC, 60 Hz; 40 A, 120 VAC, 60 Hz
Wire Size Minimum
No. 14 AWG
Knockout Dimensions Back
(2) Combination 1/2" - 3/4"
Operating Temperature Min - Maximum
-40 - 130 degree Fahrenheit
Maximum On/Off Operations
12
Tungsten Ranges
40 A, 120-240 VAC, 60 Hz
Knockout Dimensions Left
(1) combination 1/2" - 3/4"
Specifications:
Includes: (1) On/Off Tripper
Suitable for: Blowers Pumps Conveyors Electric Fences Fans Filters Indoor/Outdoor Lighting Pool Heaters and Signs
The T100 Series mechanical time switch has proven it can stand the test of time. These dependable time switches can handle electrical loads up to 40 a per pole and allow for up to 12 On/Off operations per day. A manual override switch provides added convenience.
