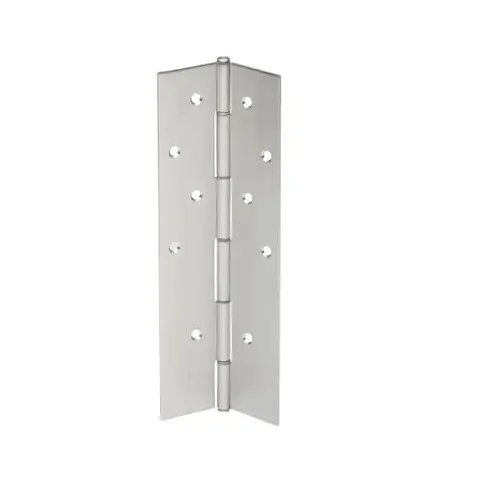

83" Concealed Continuous Hinge with Electronic Power Transfer Prep Satin Stainless Steel Finish

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

IVES 700-83-32D-EPT 83" Concealed Continuous Hinge with Electronic Power Transfer Prep Satin Stainless Steel Finish

Item #: 700-83-32D-EPT by IVES

See reviewsSee reviews
See reviews summary

$674.77

/each
SAVE UP TO 67.48
Buying in bulk
Special Order*Usually ships in 1-2 weeks
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Volume Pricing

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

For Use With

1-3/4" Doors

Color Code

630/US32D

Function

Continuous Hinge

Maximum Door Width

48 Inch

Hinge Type

Continuous Full Mortise

Finish Description

Satin Stainless Steel

Bearing Type

Split

Product Length

83 Inch

ADA Compliant

No

Finish Family

Stainless Steel

Hinge Size

83 Inch

Product Material

Stainless steel

Standards

Exceeds Grade 1 ANSI/BHMA 156.26; UL10C listed

Fastener Size

10 X 1/2" Self Drilling, Self Tapping Screws; 10 X 1" Wood Screws

Function Family

Hinge/Pivot

Features

Electric Power Transfer, Prep is Standard 30" From Top Edge of Door to Centerline of Cut-Out,

Product Type

Hinge/Pivot

Series

700 Series

Manufacturer Parent

Allegion

Sub-Series

700-83-EPT

Finish

Satin Stainless Steel

Dimension

83"

Fire Rated

No

Hazardous Material

No

Material

Stainless Steel

Manufacturer Warranty

Limited 1 year warranty

UL Listing Type

UL10C

Power Supply

Wired

Finish code

US32D

No of inners

1

Product Overview
83" Length, Full Mortise, Stainless Steel, 630 Satin Stainless Steel, With Electric Power Transfer (EPT), Prep is Standard 30" From Top Edge of Door to Centerline of Cut-Out
