IVES 7255-SET-BLK 7255 Center Hung Pivot Set Matte Black
Item #: 7255-SET-BLK by IVES
See reviewsSee reviews
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See How Watch Now
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
Finish
Matte Black
Function
Pivot Set
Finish Description
Black
Product Type
Hinge/Pivot
Series
7250 Series
Manufacturer Parent
Allegion
Sub-Series
HP_Pivots_ives_17
Fire Rated
Yes
Function Family
Hinge/Pivot
Standards
ANSI/BHMA A156.4 C07032; UL Listed
Floor To Door Clearance
3/16" to 3/4"
Features
Positive Locking
Product Material
Cast Brass
Color Code
622/US19/MTBK
Maximum Door Load
500 lb.
Vertical Adjustment
3/16 Inch
Included Components

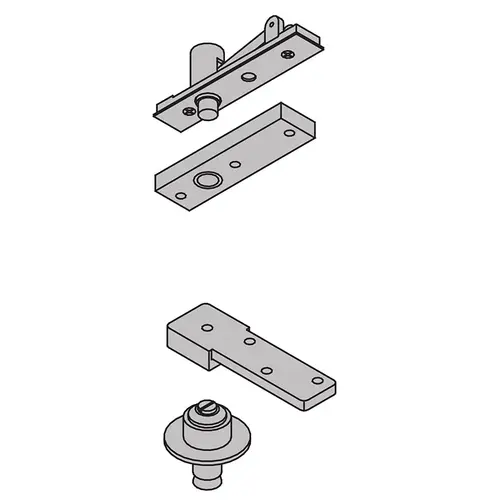

Consists of 7255 Top Header Mount and 7255 Bottom Base Plate Mount
Finish Family
Black
Product Overview
7255 Center hung pivot, 500lb with bottom base mount
Certifications
Material substrate
- Maximum door load 500 pounds
- Recommended for use with 1-3/4" minimum door thickness
- Not recommended for doors larger than 4'0" x 8'0"
- Easy installation, tilt on bearing and bearing pin
- Adjustable floor to door clearance 3/16" to 3/4", consult Banner Solutions support if greater than 3/4"
- Vertical adjustment range 3/16", with positive locking
- Non-handed
Certifications
- Meets ANSI/BHMA A156.4 C07032
- UL Listed, 20 minute fire doors
Material substrate
- Made from cast brass
