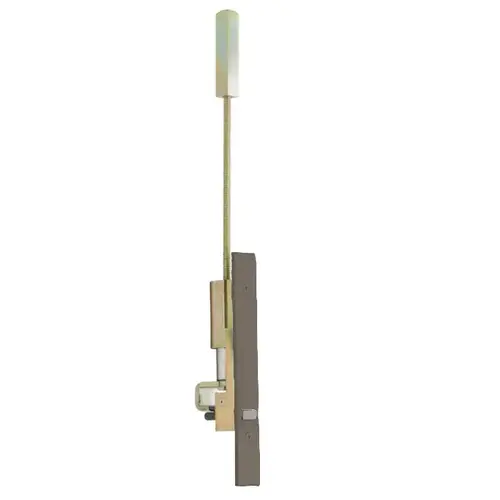

IVES FB31T-12-MD-10B 12" Top Automatic Flush Bolt for Metal Doors Oil Rubbed Bronze Finish
Item #: FB31T-12-MD-10B by IVES
See reviewsSee reviews
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
Finish
Oil Rubbed Dark Bronze
Finish Description
Oil Rubbed Dark Bronze
Product Type
Door Accessory
Series
Parts/Accessories
Body Size
1" x 6-3/4" x 2"
Rod Length
12 Inch
Application
Metal Door
Color Code
613/US10B
Function
Top Bolt
Guide Size
1" x 1-27/32" x 27/32" x 3/32"
Bolt Throw
3/4" with a 7/8" Vertical Adjustment
ADA Compliant
No
Finish Family
Dark Bronze
Included Components
8-32 X 3/8" UFPHMS; 10-12 X 1-1/4" Plastic Anchor; 6-32 X 3/8" FPHMS; 6 X 3/4" FPHSMS; 8 X 1" FPHSMS; 10 X 1" FPHSMS
Strike Size
15/16" x 2-1/4" x 1/16"
Product Material
Brass
Standards
Fits Standard ANSI/BHMA A115.4 Door Frame Preparations; UL10C Listed (3 Hour) Fire Doors 8ft X 10ft When Both Top and Bottom Bolt Used
Function Family
Part/Component
Features
Fully Automatic: Inactive Door is Latched, Bolts are Extended When Active Door Closes, Door is Unlatched, Bolts Retract When Active Door is Opened; Low Actuation Forces—Top Bolt Has No Spring Tension
Bolt Backset
3/4 Inch
Manufacturer Parent
Allegion
Rub Plate Size
1-1/4" x 1-11/16" x 3/64"
Sub-Series
FB31T-12-MD-10B
Dimension
1" Wide x 6-3/4" Long x 2" Deep
Hazardous Material
No
Material
Solid Brass
Depth
2"
Manufacturer Warranty
Limited 1 year warranty
Finish code
US10B
No of inners
1
Product Overview
Top Bolt Only for Automatic Flush Bolt, Stainless steel substrate. 613 Oil Rubbed Bronze
