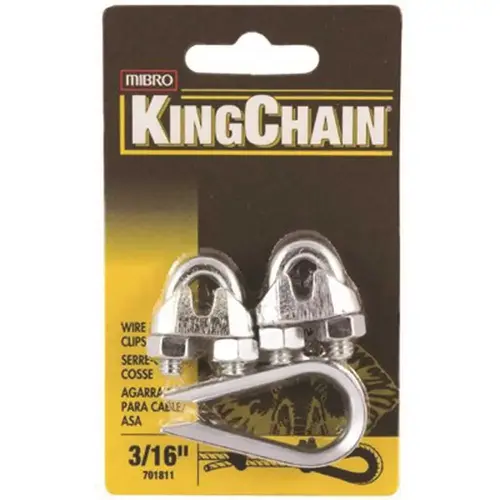

3/16 in. Zinc-Plated Wire Rope Clip and Thimble Set

Roll over image to zoom in

KingChain 701811 3/16 in. Zinc-Plated Wire Rope Clip and Thimble Set

Item #: 701811 by MIBRO

UPC #: 066366701814

See reviews See reviews
The item is currently out of stock and it may or may not be restocked
OUT OF STOCK

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Warranty

Guaranteed against defects in workmanship and material or product replaced free of charge

Manufacturer Warranty

Guaranteed against defects in workmanship and material or product replaced free of charge

Assembled Depth (in.)

4.75

Assembled Height (in.)

0.65

Assembled Width (in.)

2.85

Fastener length (in.)

4.75

Finish Family

Metallic

Pack Size

1

Material

Zinc/Aluminum Coated Steel

UNSPSC

31151609

KingChain Wire Rope Clips and Thimbles are used to create a complete and secure eye or loop on wire rope. Wire rope should be the same diameter as rope clip and thimble. Wire Rope Clips consist of a U-shaped bolt, a forged saddle and 2 threaded nuts. The 2 layers of wire rope are placed in the U-bolt and clamped into place for a tight connection. Wire Rope Thimbles form the inside of the loop eye and provide rigidity and abrasion resistance for the inside of the loop. Both clips and thimbles are made from steel with a zinc-plated finish for weather resistance. If used on plastic coated cable, remove the coating from the assembly area before creating the loop. Do not use to hang loads, lift loads, support weight of persons or objects, and do not use on athletic or playground equipment.

  • Use exclusively with 3/16 in. wire rope
  • Includes 2 wire rope clips and 1 wire rope thimble
  • To assemble the wire rope clips, insert both ends of wire into clip saddle and tighten nuts until secure
  • For a safe connection, be sure to use the right number of clips, number of clips to use: 1/16 in. to 3/8 in. rope - 3 clips, 1/2 in. to 5/8 in. rope - 4 clips, 3/4 in. rope - 5 clips
  • To assemble wire rope thimbles, place thimble into loop end, insert both ends of wire into clip saddle and tighten nuts until secure
