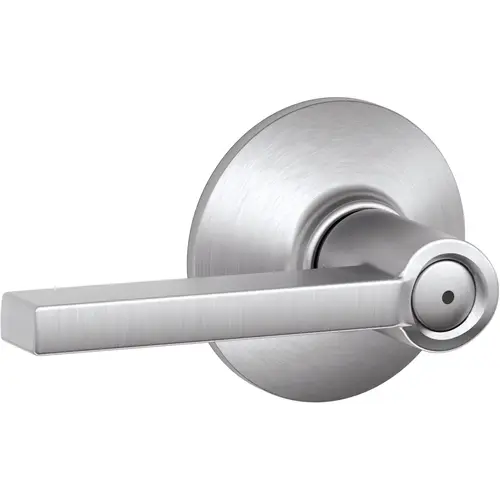

Schlage Residential F40 LAT 626 F40LAT626 16-080 10-027 Latitude Privacy - Satin Chrome
Item #: F40 LAT 626 by Schlage Residential
UPC #: 043156184842
See reviewsSee reviews
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See How Watch Now
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
- Privacy Locking - Ideal for Bedrooms and Bathrooms
- Reversible Handing
- Applications: Residential single- and multi-family doors
- Certifications: ANSI A156.2, 1996, Series 4000 Grade 2
- Easy 3-Step Installation, Only a Screwdriver Needed
- Lifetime Mechanical & Finish Warranty
- Quality Materials and Construction for Exceptional Security
- U.L. Listed: Locks for up to three-hour fire doors available
- Quality Finishes Coordinate with Plumbing and Lighting
- Bed/Bath (Privacy) Function - Push Button Locking, Turning Inside Knob/Lever Releases Button
- Certified Commercial Grade 2
- Door thickness range: 1-3/8" to 1-3/4" (35mm-44mm) standard
- Backset: Universal latch standard, fits either 2-3/8" (60mm) or 2-3/4" (70mm) backsets. 5" (127mm) backset available
- ADA compliant: Yes
Color Code
626/US26D
Design
Latitude Lever
Strike
Full Lip 2-1/4 Inch, Radius Corner
Backset
2-3/8 Inch or 2-3/4 Inch
Series
F Series
Finish
Satin Chrome
Function
Privacy/Bed/Bath
Grade
ANSI/BHMA Grade 2
Finish Description
Satin Chrome
Lever Style
LAT-Latitude
Rose/Escutcheon Trim
Round Rose
Product Type
Cylindrical Lock
Handing
Reversible
Projection
2.6250
Door Thickness
1-3/8" to 1-3/4"
Bore Size
2.1250
Product Length
5.1560
Included Components
Privacy Knobs; Roses; Latch; Strike; Mounting Hardware
Door Cross Bore
2.125 Inch
Product Material
Zinc
Box Length
7.0000
Box Width
6.0000
Box Height
3.2500
Application
Residential Bedrooms and Bathrooms
Warranty
Limited Lifetime Mechanical and Finish Warranty
ANSI Function
F76
Latch Type
Spring
Strike Type
Radius Corner Full Lip
ADA Compliant
YES
Finish Family
Satin Chrome
Strike Size
1-5/8 x 2-1/4 Inch
Standards
ANSI/BHMA A156.2-2011; ANSI/BHMA A156.39-2015; UL Listed; ADA Compliant
Faceplate Dimension
1" x 2-1/4"
Door Preparation
Cross Bore 2-1/8"; Edge Bore 7/8"
Function Description
Outside knob/lever locked by pushbutton on inside knob/lever. Rotating inside knob/lever or closing door releases/unlocks button. Emergency release in outside knob/lever.
For Door Thickness
1-3/8" to 1-3/4"
Function Family
Privacy/Bedroom/Bathroom
Product Projection
2-5/8 Inch
Features
Easy Installation with Phillips Screwdriver; Self-Aligning Screw Holes make Installation Easy and Hassle Free; Universal Latches Slide Easily into Place and Require No Tools or Manual Adjustments
Bolt Throw
1/2 Inch
Manufacturer Parent
Allegion
Door Edge Bore
1 Inch
Box Dimensions (L x W x H)
3.25x6x7"
Lever Style Family
Straight Lever
Sub-Series
F40-LAT
Collection
Latitude
Package Height
3.25"
Package Length
7"
Package Width
6"
Item Weight
1.96 lbs
Product Overview
The Schlage Latitude Lever Bed and Bath Lock in Satin Chrome is perfect for use on bedroom and bathroom doors where locking is needed. The Latitude Lever offers a crisp perspective on minimalist design with its clean lines and rectangular features, and becomes especially edgy when finished in Satin Chrome. Plus, it's been designed and tested with strength and durability in mind.
