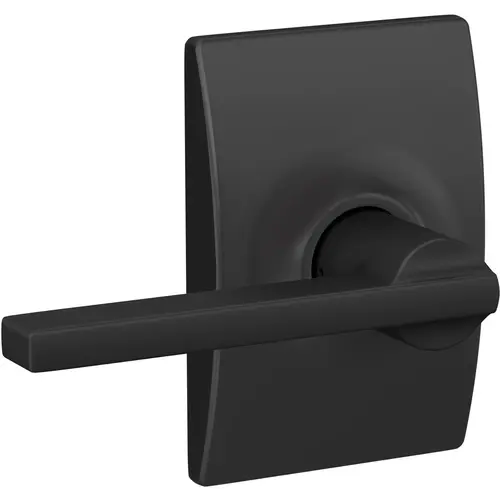

Schlage Residential F10 LAT 622 CEN F10LAT622CEN 16-080 10-027 Latitude / Century Passage - Matte Black
Item #: F10 LAT 622 CEN by Schlage Residential
UPC #: 043156457182
See reviewsSee reviews
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See How Watch Now
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
- Non-Locking - Ideal for Closets and Rooms Where Locking is Not Needed
- Reversible Handing
- Applications: Residential single- and multi-family doors
- Certifications: ANSI A156.2, 1996, Series 4000 Grade 2
- Easy 3-Step Installation, Only a Screwdriver Needed
- Lifetime Mechanical & Finish Warranty
- Quality Materials and Construction for Exceptional Security
- Quality Finishes Coordinate with Plumbing and Lighting
- U.L. Listed: Locks for up to three-hour fire doors available
- Door thickness range: 1-3/8" to 1-3/4" (35mm-44mm) standard
- Certified Commercial Grade 2
- Hall/ Closet (Passage) Function - - Both Knobs/Levers Always Unlocked
- Backset: Universal latch standard, fits either 2-3/8" (60mm) or 2-3/4" (70mm) backsets. 5" (127mm) backset available
- ADA compliant: Yes
Design
Latitude Lever With Century Rose
Series
F Series
Function
Passage/Hall/Closet
Finish
Matte Black
Backset
2-3/8 Inch or 2-3/4 Inch
Strike
Full Lip 2-1/4 Inch, Radius Corner
Color
Flat Black Coated
Color Code
622/US19/MTBK
Grade
ANSI/BHMA Grade 2
Finish Description
Black
Lever Style
LAT-Latitude
Rose/Escutcheon Trim
CEN-Century
Product Type
Cylindrical Lock
Handing
Reversible
Projection
2.6250
Door Thickness
1-3/8" to 1-3/4"
Bore Size
2.1250
Product Height
3-1/4
Product Length
7 Inch
Included Components
Passage levers, roses, latch, strike, mounting hardware
Door Cross Bore
2.125 Inch
Product Material
Zinc
Box Length
7.0000
Box Width
6.0000
Box Height
3.2500
Application
Residential Single and Multi-Family Doors
Warranty
Limited Lifetime Mechanical and Finish Warranty
ANSI Function
F75
Latch Type
Spring
Strike Number
10-027
Strike Type
Radius, Full Lip
ADA Compliant
YES
Finish Family
Black
Strike Name
Round Corner Full Lip
Standards
ANSI/BHMA A156.39-2015; UL Listed; ADA
Faceplate Dimension
1" x 2-1/4"
Door Preparation
Cross Bore 2-1/8"; Edge Bore 7/8"
Function Description
Latch retracted by knobs/levers at all times
For Door Thickness
1-3/8" to 1-3/4"
Function Family
Passage/Hall/Closet
Product Projection
2-5/8 Inch
Features
Non-Locking Ideal For Closets And Rooms Where Locking Is Not Needed; Easy 3-Step Installation, Only A Screwdriver Needed; Quality Materials And Construction For Exceptional Security; Quality Finishes Coordinate With Plumbing And Lighting
Strike Size
1-5/8 x 2-1/4 Inch
Bolt Throw
1/2 Inch
Manufacturer Parent
Allegion
Door Edge Bore
1 Inch
Box Dimensions (L x W x H)
3.25x6x7"
Lever Style Family
Straight Lever
Sub-Series
F10-LAT-CEN
Alternate Part Number-1
188016
Collection
Latitude
Package Height
3.5"
Package Length
7"
Package Width
6"
Item Weight
3 lbs
Product Overview
The Schlage Latitude Lever with Century Trim Hall and Closet Lock in Matte Black is perfect for use on doors where locking is not needed. The Latitude lever offers a crisp perspective on minimalist design with its clean lines and rectangular features, while the Century trim is chic with a delicate, slightly curved shape. The striking appearance of the Matte Black finish creates an elegant look that's sure to be noticed in any style setting. Plus, it's been designed and tested with strength and durability in mind.
