Features
Manufacturer Parent
Allegion
Handing
Non-Handed
Closer Piston Diameter
1-1/2 Inch
Closer Arm Type
Regular Arm
Mounting Hole Size
2-1/4" x 5"
Finish Description
Black Painted
Product Width
2-1/4 Inch
Closer Arm Construction
Forged Steel
Function
REG-Regular Arm
Maximum Door Opening
120° (Hinge Pull, Top Jamp Push); 180° (Parallel Arm)
Hand
Non-Handed
Sub-Series
DC_Surface Mounted Closers_lcn_9
ADA Compliant
YES
Spring Size
Adjustable 1-6
Mounting Type
Hinge (Pull Side), Top Jamb (Push Side), Parallel Arm (Push Side)
Closer Clearance
2-3/8" (Hinge Pull); 4" (Parallel Arm Push)
Product Height
3-1/2 Inch
Closer Arm Extension
1" (Hinge Pull, Top Jamb Push)
Closer Cover
Plastic Cover
Fasteners
Self Reaming and Tapping Screws
Function Family
Non Hold Open Door Closer
Standards
Grade 1 - ANSI A156.4, UL Listed;Cul Listed
Templating
Peel-n-Stick
Door Thickness
1-3/4 inch
Closer Fluid
All Weather Liquid X Fluid
Product Type
Door Closer/Holder/Stop
Features
Full-Complement Bearing; Double Heat Treated Pinion Journal
Product Material
Cast Iron
Color Code
693/SP119/SPBLK
Product Length
12-1/4 Inch
Warranty
30 yr
Series
4040XP Series
Finish Family
Black
Finish
Black
Material
Cast Iron
Application
Surface Door Closer
Color
Black
Package Quantity
1
UL Listed
No
Hinge Type
Door Closer
Commercial/Residential
Commercial
Door Handing
Non Handed
Interior/Exterior
Interior/Exterior
Hardware Included
Hardware Not Included
Security Grade
ANSI Grade 1
Adjustable
True
UNSPSC
30171514
Mount Type
Tri Pack
MADE IN THE USA
Yes
GSA Approved
No
AbilityOne
No
TAA/BAA Compliant
Yes
Lever/Pull Included
True
Hex Key Dogging
False
Cover
Less Cover
Arm Type
REGARM - Regular Arm
Cylinder
CYL - Standard Cylinder (Adjustable spring size 1-6)
Closer Size
6
BAA Qualified
Yes
Mounting Location
Push Side
Finish Type
Powder Coat
Mounting Method
Surface Mount
Substrate Type
Iron
Cover Type
Plastic/Metal
Duty Level
Heavy Duty
Mounting Hole Pattern
2-1/4" x 5"
Map Policy
Yes
Screw Package
SRT - Self Reaming and Tapping Screws
Special Rust Inhibitor for Powder Coat Finishes (SRI)
Yes
Product Overview

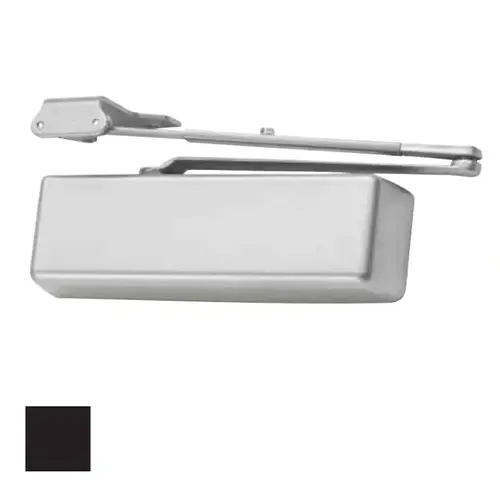

LCN 4040XP Series LCN 4040XP DOOR CLOSER
The LCN 4040XP Series Door Closer is the "Gold Standard" in Door Closers, tested and certified to 10 million cycles (well above the 2 million cycle test standard for ANSI Grade 1). It's one of the most well-known, frequently purchased, and durable Closers on the market today.
It's the choice of demanding buyers who require durability, longevity, and performance over decades in operation.
Invest once the 4040XP closer is an exceptional value with low lifecycle cost because of its decades of durability compared to economical alternatives.
In environments like schools, hospitals, business buildings and other commercial settings where safety is of the utmost importance, the LCN 4040XP is a "go to" choice.
It meets ANSI/BHMA A156.4 Grade 1 standards and ADA reduced opening force requirements. This Closer is cUL listed and UL listed for self-closing doors without hold-open and boasts a 30-year limited warranty.
The 4040XP Series features include standard non-handed Plastic Cover, with optional plated finish available for cover, Arm and fasteners. Materials include high-strength cast-iron cylinder, forged steel Arm, Double heat-treated steel pinion and full complement, low friction bearing for rugged reliability in high-traffic installations.
LCN peel-n-stick templates assure quick and accurate installation, and the patented LCN Green Dial takes the guesswork out of Spring force adjustments.
Body construction
- Cast iron cylinder with full-complement bearing
- 1-1/2" diameter piston
- Double heat treated pinion journal
Quality and durability
- All-weather Liquid X fluid
- Heat-treated internal pinion for extra durability
- Forged (vs. cast) Arms for additional rigidity
- Extensive abuse testing
- 5X the Grade 1 certification (10 million cycle certification vs. 2 million cycle standard)
- 30-year warranty
Installation & Adjustment
- LCN patented Green Dial Spring force indicator for easy in-the-field adjustability
- Adjustable Spring sizes 1-6
- Universal non-handed
- Peel-n-stick template and snap-on cover
Specifications
- Non-sized cylinder is adjustable for Interior doors to 5 ft0" and exterior doors to 4 ft0".
- Meets ADA requirements.
- UL and cUL listed for self-closing doors without hold-open.
- Tested and certified under ANSI/BHMA A156.4 Grade 1 (independently certified up to 10 million cycles).
- LCN 4040XP may be used with all LCN 4040 accessories.
- Non-handed, non-sized, delayed action and accessibility options available.
Designs and Finishes
- Powder coat finish offered in standard colors and a large selection of optional custom colors.
- Standard Plastic Cover and optional handed Metal Cover available.
- Optional plated finish on Metal Cover, Arm and fasteners.
- Optional SRI primer for installations in corrosive conditions available with powder coat only.
