Features
Mounting Type
Push or Pull Side Mount
Grade
ANSI/BHMA Grade 1
Application
Most Demanding High-Use-And-Abuse Applications
Hand
Non-Handed
Handing
Non-Handed
Warranty
30 year
Color Code
693/SP119/SPBLK
Spring Size
Adjustable 1-6
Function
SHCUSH-Spring HO Cush-N-Stop Arm
Door Thickness
1-3/4 inch
Door Size
5' (Interior); 4' (Exterior)
Maximum Door Opening
120° (Hinge Pull, Top Jamp Push); 110° (Parallel Arm)
Finish Description
Black Painted
Product Height
3-1/2 Inch
Product Length
12-1/4 Inch
Product Width
2-1/4 Inch
ADA Compliant
YES
Finish Family
Black
Included Components
Patented Green Dial Spring Force Indicator
Closer Arm Construction
Forged Steel
Product Material
Cast Iron
Closer Cover
Plastic Cover
Fasteners
Self Reaming and Tapping Screws
Standards
Grade 1 - ANSI A156.4, UL 10C, 100 Hour Salt Spray, Meets BAA - Buy American Act
Closer Arm Extension
11" (Hinge Pull, Top Jamb Push)
Closer Arm Type
Spring Hold Open Cush-n-Stop Arm
Closer Clearance
2-3/8" (Hinge Pull); 6" (Parallel Arm Push)
Closer Fluid Temperature Range
-30°F to 120°F
Closer Fluid
All Weather Liquid X Fluid
Closer Piston Diameter
1-1/2 Inch
Closer Pinion Diameter
3/4 Inch
Function Family
Hold Open Door Closer
Mounting Hole Size
2-1/4" x 5"
Templating
Peel-n-Stick
Features
Full Complement Bearing; Double Heat-Treated Steel Pinion Journal
Product Type
Door Closer/Holder/Stop
Series
4040XP Series
Manufacturer Parent
Allegion
Sub-Series
DC_Surface Mounted Closers_lcn_12
Product Overview

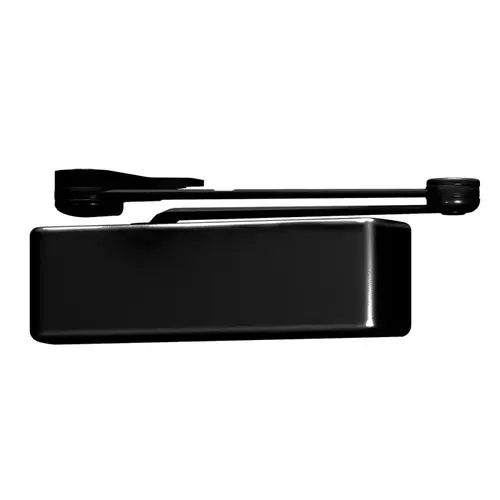

LCN 4040XP Series LCN 4040XP DOOR CLOSER
The LCN 4040XP Series Door Closer is the "Gold Standard" in Door Closers, tested and certified to 10 million cycles (well above the 2 million cycle test standard for ANSI Grade 1). It's one of the most well-known, frequently purchased, and durable Closers on the market today.
It's the choice of demanding buyers who require durability, longevity, and performance over decades in operation.
Invest once the 4040XP closer is an exceptional value with low lifecycle cost because of its decades of durability compared to economical alternatives.
In environments like schools, hospitals, business buildings and other commercial settings where safety is of the utmost importance, the LCN 4040XP is a "go to" choice.
It meets ANSI/BHMA A156.4 Grade 1 standards and ADA reduced opening force requirements. This Closer is cUL listed and UL listed for self-closing doors without hold-open and boasts a 30-year limited warranty.
The 4040XP Series features include standard non-handed Plastic Cover, with optional plated finish available for cover, Arm and fasteners. Materials include high-strength cast-iron cylinder, forged steel Arm, Double heat-treated steel pinion and full complement, low friction bearing for rugged reliability in high-traffic installations.
LCN peel-n-stick templates assure quick and accurate installation, and the patented LCN Green Dial takes the guesswork out of Spring force adjustments.
Body construction
- Cast iron cylinder with full-complement bearing
- 1-1/2" diameter piston
- Double heat treated pinion journal
Quality and durability
- All-weather Liquid X fluid
- Heat-treated internal pinion for extra durability
- Forged (vs. cast) Arms for additional rigidity
- Extensive abuse testing
- 5X the Grade 1 certification (10 million cycle certification vs. 2 million cycle standard)
- 30-year warranty
Installation & Adjustment
- LCN patented Green Dial Spring force indicator for easy in-the-field adjustability
- Adjustable Spring sizes 1-6
- Universal non-handed
- Peel-n-stick template and snap-on cover
Specifications
- Non-sized cylinder is adjustable for Interior doors to 5 ft0" and exterior doors to 4 ft0".
- Meets ADA requirements.
- UL and cUL listed for self-closing doors without hold-open.
- Tested and certified under ANSI/BHMA A156.4 Grade 1 (independently certified up to 10 million cycles).
- LCN 4040XP may be used with all LCN 4040 accessories.
- Non-handed, non-sized, delayed action and accessibility options available.
Designs and Finishes
- Powder coat finish offered in standard colors and a large selection of optional custom colors.
- Standard Plastic Cover and optional handed Metal Cover available.
- Optional plated finish on Metal Cover, Arm and fasteners.
- Optional SRI primer for installations in corrosive conditions available with powder coat only.
