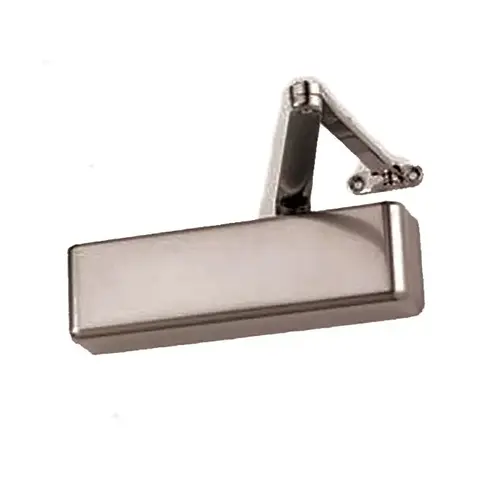

LCN 4041-DEL-RW/PA-DKBRZ Parallel Arm Super Smoothee Adjustable 1-6 Surface Mounted Delay Door Closer with TBSRT Thru Bolts 695 Dark Bronze Finish

Item #: 4041-DEL-RW/PA-DKBRZ by LCN

See reviewsSee reviews
See reviews summary
In Stock

$636.82

/each
SAVE UP TO 63.68
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 32 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Volume Pricing

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Finish

Dark Bronze Painted

Grade

ANSI/BHMA Grade 1

Spring Size

1-6

Function

RW/PA-Regular Arm w/PA Shoe

Mount

Push or Pull Side

Finish Description

Dark Bronze Painted

Closer Options

Delayed Action

Closer Cover

Plastic Cover

Product Type

Door Closer/Holder/Stop

Series

4040XP Series

Closer Pinion Diameter

3/4 Inch

Manufacturer Parent

Allegion

Delayed Action

true

Handing

Non-Handed

Closer Piston Diameter

1-1/2 Inch

Closer Arm Type

Regular Arm with Parallel Arm Bracket

Mounting Hole Size

2-1/4" x 5"

Product Width

2-1/4 Inch

Closer Arm Construction

Forged Steel

Maximum Door Opening

120°

Hand

Non-Handed

Sub-Series

DC_Surface Mounted Closers_lcn_14

ADA Compliant

YES

Mounting Type

Push or Pull Side

Closer Clearance

2-3/8" (Hinge Pull); 6" (Parallel Arm Push)

Product Height

3-1/2 Inch

Application

Most Demanding High-Use-And-Abuse Applications

Closer Arm Extension

11" (Hinge Pull, Top Jamb Push)

Function Family

Non Hold Open Door Closer

Standards

Grade 1 - ANSI A156.4, UL 10C, 100 Hour Salt Spray, Meets BAA - Buy American Act

Door Size

5' (Interior); 4' (Exterior)

Templating

Peel-n-Stick

Door Thickness

1-3/4 inch

Closer Fluid

All Weather Liquid X Fluid

Closer Fluid Temperature Range

-30°F to 120°F

Features

Full Complement Bearing; Double Heat-Treated Steel Pinion Journal

Product Material

Cast Iron

Fastener Type

Self Reaming and Tapping Screws

Product Length

12-1/4 Inch

Closer Hold-Open

true

Warranty

30 year

Included Components

Patented Green Dial Spring Force Indicator

Finish Family

Dark Bronze

Dimension

12-1/4" x 2-1/4" x 3-1/2"

Material

Cast Iron

Mounting Style

Surface Mounting

Hold Open

No

Manufacturer Warranty

Limited 30 Year Warranty

UL Listing Type

UL 10C Rated

Closer Type

Surface Mounted Closer

Hazardous Material

No

Finish code

695 (DKBRZ)

No of inners

1

Mounting Hole Pattern

1" Diagonal Mounting with 2-1/4" Spacing

Product Overview
4041 SeriesHeavy Duty Door Closer

The LCN 4041 Series is a non-handed surface mounted door closer. A wide choice of options, mounting accessories and ease of installation offer maximum versatility. The LCN 4041 Series is a heavy duty door closer designed to be used on aluminium, hollow metal or wood swinging commercial interior/exterior doors and is ideally suited for hospitals, educational, institutional and other high traffic applications.

Performance Features:
  • Universal, fully reversible, nonhanded door closer.
  • Closer cylinder constructed of high strength cast iron for extra durability.
  • Tested to 10,000,000 cycles.
  • Fully adjustable 1-6 spring strength to suit door size and site conditions.
  • Shipped set to size 3.
  • Standard closer offers 3 installation options.
  • Regular (Pull side)
  • Top Jamb (Pull side)
  • Parallel Arm (Push side)
  • Independent adjustment valves for adjusting backcheck, closing and latching speeds.
  • All adjustment valves are concealed behind the cover to prevent tampering.
  • Joints in arms and shoe brackets adapt to uneven mounting surfaces.
  • Fast adjust dial (fast accurate spring tension) to help installers accurately adjust the closer to match the conditions of the application. As spring power is adjusted, the size appears on the face of the dial.
  • Stick-on template for fast, accurate installation. Cuts installation time in half.
  • Closers installed according to LCN installation instructions require minimal periodic maintenance or adjustments.
Specifications: Door Type:
  • Timber or Metal
Door Size:
  • External Door 610mm - 1219mm
  • Internal Door 610mm - 1524mm
Applications:
  • Regular - Pull Side Mount
  • Parallel Arm - Push Side Mount
  • Top Jamb - Push Side Mount
Adjustment Controls:
  • Closing Speed
  • Latching Speed
  • Backcheck
Strength:
  • 1-6 Adjustable
Options:
  • Hold Open Arm
  • Adaptor Plate
  • Parallel Arm Drop Plate
  • Square Metal Cover
Finish:
  • Aluminium
  • Satin Stainless Steel
  • Polished Stainless Steel
Warranty:
  • 10 Years
