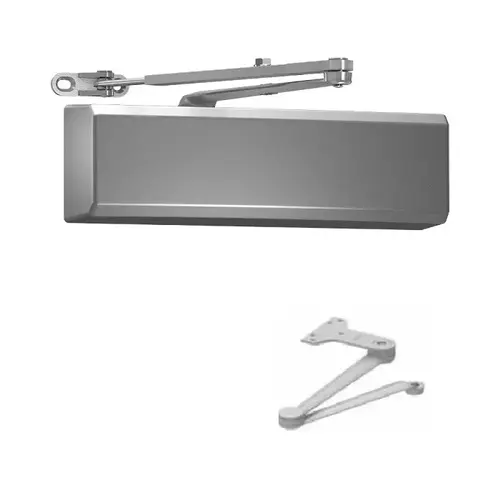

LCN 4050A-HEDA-689-PC-RH-TBSRT 4050 Series Surface Mounted Door Closer Aluminum Painted

Item #: 4050A-HEDA-689-PC-RH-TBSRT by LCN

See reviewsSee reviews

$1,090.89

/each
SAVE UP TO 109.09

Buying in bulk

Special Order*Usually ships in 1-2 weeks
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See How Watch Now
Large Order Quote

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Finish

Aluminum Painted

Grade

ANSI/BHMA Grade 1

Handing

RH

Spring Size

1-6

Function

HEDA-Hold Open Extra Duty Arm

Mount

Tri-Pack (Pull Side Top Jamb Parallel)

Finish Description

Aluminum Painted

Closer Cover

Plastic Cover

Product Type

Door Closer/Holder/Stop

Series

4050 Series

Mounting Type

Tri-Pack (Pull Side Top Jamb Parallel)

Application

Commercial Building Applications and Competitive Specification Situations

Hand

Right Hand

Warranty

25 Year

Door Thickness

1-3/4 inch

Product Height

3-7/8 Inch

Product Length

12-7/8 Inch

Product Width

2-13/16 Inch

ADA Compliant

YES

Finish Family

Aluminum

Closer Arm Construction

Forged Steel

Product Material

Cast Aluminum

Standards

Grade 1 - ANSI A156.4, UL 10C, 100 Hour Salt Spray, Meets BAA - Buy American Act

Closer Arm Extension

11" (Hinge Pull, Top Jamb Push)

Closer Arm Type

Hold Open Extra Duty Arm

Closer Clearance

2-13/16" (Hinge Pull)

Closer Fluid Temperature Range

-30°F to 120°F

Closer Fluid

All Weather Liquid X Fluid

Closer Piston Diameter

1-1/2 Inch

Closer Pinion Diameter

11/16 Inch

Function Family

Hold Open Door Closer

Mounting Hole Size

2-3/8" x 6-3/4"

Templating

Peel-n-Stick

Fastener Type

Self Reaming and Tapping Screws

Features

Full Complement Bearing; Double Heat-Treated Steel Pinion Journal

Door Size

4" (Interior); 3" (Exterior)

Maximum Door Opening

180°

Manufacturer Parent

Allegion

Closer Hold-Open

true

Sub-Series

4050A-HEDA-689-PC-RH-TBSRT

Product Overview
4050 SeriesCast Aluminum Closer

The 4050 Series cast aluminum closer is engineered for durability and built tough to excel in the harsh environments of high frequency, high abusive traffic areas. Ideal for commercial building applications and competitive specification situations that demand a combination of quality, reliability and value. The cast aluminum door closer offers premium features like powder coating, full complement bearing, All Weather Fluid and a 25 year warranty.

Specifications: Certifications:
  • Grade 1 - ANSI A156.4, UL 10C, ADA, 100 Hour Salt Spray, Meets BAA - Buy American Act
Body Construction:
  • Cast Aluminum Body
  • Full Complement Bearings
  • 1-1/2˝ Diameter Piston
  • 11/16˝ Diameter Double Heat Treated Pinion Journal
Fluid:
  • All Weather Liquid X Fluid
Handing:
  • Non-Handed
Templating:
  • Peel-n-Stick templates - 2-3/8˝ x 6-3/4˝ Mounting Hole Pattern
Size:
  • Adjustable spring size 1-6
Warranty:
  • 25 years
Cover:
  • Plastic, Standard
  • Metal, Optional
Fasteners:
  • Self Reaming and Tapping Screws (SRT)
Mounting:
  • Hinge (Pull Side), Top Jamb (Push Side), Parallel Arm (Push Side)
Arms:
  • Standard Regular Arm
*Finishes/Colors/Powder Coat:
  • Aluminum (689)
  • Statuary Bronze (690)
  • Light Bronze (691)
  • Black (693)
  • Dark Bronze (695)
  • Brass (696)
  • Custom colors optional
  • Optional SRI primer - powder coat only
