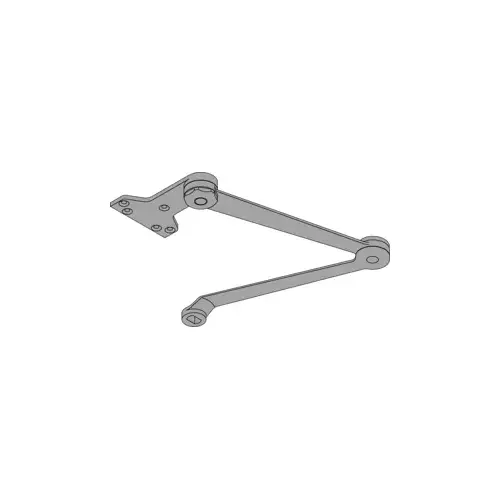

LCN 4110-3049-HEDA-AL-LH 4110 EDA Extra Duty Hold Open Arm, Left Hand, Adjustable Hold-Open on Shoe, AL/SP28/689 Aluminum Powder Coat

Item #: 4110-3049-HEDA-AL-LH by LCN Closers

See reviewsSee reviews
In Stock

$291.90

/each
SAVE UP TO 29.19

Buying in bulk

QUICK SHIPPING*Usually ships in 1 business day
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See How Watch Now
Large Order Quote

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Alternate Part Number-1

134428

Handing

Left Hand

Product Overview

LCN 4110 Series Arms and Accessories

The 4110 Smoothee is LCN's best performing heavy duty closer designed specifically for institutional and other rugged high traffic applications.

  • Ten Million Cycles
  • Cast Iron
  • Extra Duty Forged Steel Arm Standard
  • Double Heat Treated Steel Pinion
  • All Weather Fluid
  • LCN Fast™ Power Adjust
  • Fast & Accurate Installation
  • UL & cUL Listed



    • SPECIFICATIONS

  • Standard 4110 series closer is shipped with extra duty arm, standard plastic cover, 4110-201 fifth screw spacer and self reaming and tapping screws
  • Sized cylinders adjustable for interior doors to 5'0" and exterior doors to 4'0"
  • Non-sized cylinder adjustable for interior doors to 4'6" and exterior doors to 3'6"
  • Closer mounts parallel arm, specify right or left swinging door
  • 4111 cylinder meets ADA requirements
  • Standard or optional custom powder coat finish
  • Optional plated finish on metal cover, arm and fasteners
  • Optional SRI primer for installations in corrosive conditions is available with powder coat only
  • The 4110 Series is UL and cUL listed for self-closing doors without hold open
  • Tested and certified under ANSI Standard A156.4, grade one

    • ARMS

  • EXTRA DUTY ARM, 4110-3077EDA, 4110-3077EDAG
    • Non-handed parallel arm features forged, solid steel main and forearm for potentially abusive installations. Optional 4110-62G thick hub shoe for blade stop clearance.

  • HOLD-OPEN ARM 4110-3049EDA
    • Optional handed arm provides hold-open function, adjustable at shoe.

  • FUSIBLE LINK ARM, 4110-3049FL
    • Optional, handed arm releases hold-open function adjustable at shoe when exposed to temperatures above 165° F.
      • NOTE: Check local codes before specifing FL arms. NOT A life safety product!

  • CUSH-N-STOP ARM, 4110-3077CNS
    • Non-handed parallel arm features solid forged steel main arm and forearm with built-in stop in soffit shoe.

  • H-CUSH ARM 4110-3049CNS
    • Non-handed arm provides hold-open function with templated stop/hold-open points. Handle controls hold-open function.

  • SPRING CU SH ARM, 4110-3077SCNS
    • Optional, non-handed parallel arm for abusive applications features solid forged steel main arm and forearm with spring loaded stop in the soffit shoe.

  • SPRING H-CU SH ARM, 4110-3049SCNS
    • Optional, non-handed parallel arm for abusive applications features solid forged steel main arm and forearm with spring loaded stop in the soffit shoe. Handle controls hold-open function.

    INSTALLATION ACCESSORIES

  • PLATE, 4110-18
    Required for push side mount where top rail is less than 5-1/8" (130 mm), measured from the stop. Plate requires minimum 2" (51 mm) minimum top rail. Plate also used with CUSH Arm installations.

  • CUSH SHOE SUPPORT , 4110-30
    Provides anchorage for fifth screw used with CUSH arm, where reveal is less than 3-1/16" (78 mm).

  • BLADE STOP SPACER, 4110-61
    Lowers parallel arm shoe to clear 1/2" (13 mm) blade stop.

  • PA FLUSH PANEL ADAPTER, 4110-419
    Provides horizontal mounting surfacefor CUSH shoe on single rabetted or flush frame.

    • CYLINDERS

  • CYLINDER, 4110-3071
    • Standard, handed cast iron cylinder assembly.

    COVERS

  • COVER, 4110-72
    • Standard, non-handed plastic cover.
  • METAL COVER, 4110-72MC
    • Optional, handed cover. Required for plated finishes and custom powder coat finishes
