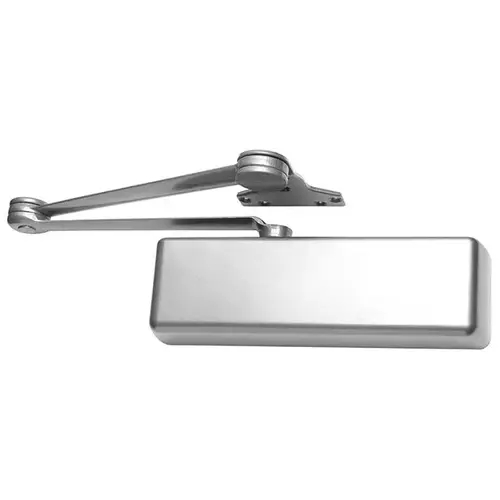

LCN 4111-AVB-SCUSH-AL-LH 4110 Series Surface Mounted Door Closer

Item #: 4111-AVB-SCUSH-AL-LH by LCN

See reviewsSee reviews
In Stock

$1,368.46

/each
SAVE UP TO 136.85

Buying in bulk

QUICK SHIPPING*Usually ships in 1 business day
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See How Watch Now
Large Order Quote

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Mounting Type

Push Side

Grade

ANSI/BHMA Grade 1

Application

High-Traffic Installations and Designed Specifically for Unique Mounting Applications

Hand

Left Hand

Handing

Left Hand

Warranty

30 year

Spring Size

Adjustable 1-5

Function

SCUSH-Spring Cush-N-Stop Arm

Door Thickness

1-3/4 inch

Mount

Push Side

Door Size

4' 6" (Interior); 3' 6" (Exterior)

Maximum Door Opening

110°

Finish Description

Aluminum Painted

Product Height

3-1/2 Inch

Product Length

12-1/4 Inch

Product Width

2-1/4 Inch

ADA Compliant

YES

Finish Family

Aluminum

Included Components

Patented Green Dial Spring Force Indicator

Closer Arm Construction

Forged Steel

Product Material

Cast Iron

Closer Options

AVB-Advanced Variable Back Check

Closer Cover

Plastic Cover

Standards

Grade 1 - ANSI A156.4, UL 10C, 100 Hour Salt Spray, Meets BAA - Buy American Act

Closer Arm Extension

11-1/2 Inch

Closer Arm Type

Spring Cush-n-Stop Arm

Closer Clearance

5-1/2 Inch

Closer Fluid Temperature Range

-30°F to 120°F

Closer Fluid

All Weather Fluid

Closer Piston Diameter

1-1/2 Inch

Closer Pinion Diameter

11/16 Inch

Function Family

Non Hold Open Door Closer

Mounting Hole Size

2-1/2" x 6"

Templating

Peel-n-Stick

Fastener Type

Self Reaming and Tapping Screws

Features

Full Complement Bearing; Double Heat-Treated Steel Pinion Journal

Product Type

Door Closer/Holder/Stop

Series

4110 Series

Backcheck

true

Manufacturer Parent

Allegion

Closer Hold-Open

false

Sub-Series

LCN-4111-AVB-SCUSH-LH

Product Overview
4110 SeriesHeavy Duty Closer

The 4110 is LCN’s best performing heavy duty closer designed specifically for institutional and other rugged high traffic applications.

Specifications: Certifications:
  • Grade 1 - ANSI A156.4, UL 10C, ADA, 100 Hour Salt Spray, Meets BAA - Buy American Act
Body Construction:
  • Cast Iron Body
  • Full Complement Bearing
  • 1-1/2" Diameter Piston
  • 11/16" Diameter Double Heat Treated Pinion Journal
Fluid:
  • All Weather Fluid
Handing:
  • Handed
Templating:
  • Peel-n-Stick templates - 2-1/2" x 6" Mounting Hole Pattern
Size:
  • Adjustable Spring Size 1-5, or Sized 6, Includes Patented Green Dial
Warranty:
  • 30 years
Cover:
  • Plastic, Standard
  • Metal, Optional
Fasteners:
  • Self Reaming and Tapping Screws (SRT)
Mounting:
  • Parallel Arm (Push Side)
Arms:
  • Extra-Duty arm
Finishes/Colors/Powder Coat:
  • Aluminum (689)
  • Statuary Bronze (690)
  • Light Bronze (691)
  • Black (693)
  • Dark Bronze (695)
  • Brass (696)
  • Custom colors optional
  • Optional SRI primer - powder coat only
  • Optional plated finishes
