Left Hand Heavy Duty Parallel Arm Spring Cush Push Side Mount Adjustable 1-5 Door Closer with TBSRT Thru Bolts 695 Dark Bronze Finish

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

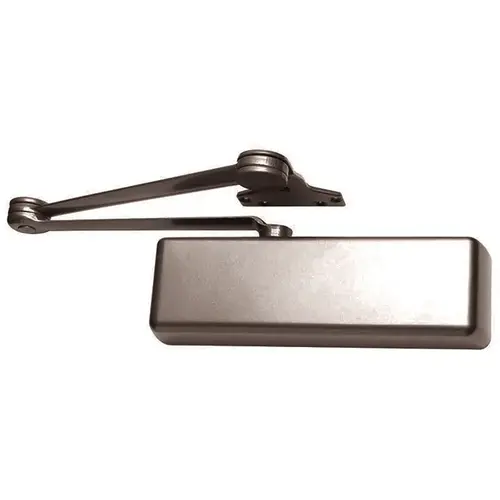

LCN 4111-SCUSH-DKBRZ-LH Left Hand Heavy Duty Parallel Arm Spring Cush Push Side Mount Adjustable 1-5 Door Closer with TBSRT Thru Bolts 695 Dark Bronze Finish

Item #: 4111-SCUSH-DKBRZ-LH by LCN

See reviewsSee reviews
See reviews summary
In Stock

$693.05

/each
SAVE UP TO 69.30
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 8 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Volume Pricing

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Finish

Dark Bronze Painted

Handing

LH

Function

SCUSH-Spring Cush-N-Stop Arm

Finish Description

Dark Bronze Painted

Closer Cover

Plastic Cover

Product Type

Door Closer/Holder/Stop

Series

4110 Series

Mounting Type

Push or Pull Side

Grade

ANSI/BHMA Grade 1

Application

High-Traffic Installations and Designed Specifically for Unique Mounting Applications

Hand

Left Hand

Door Thickness

1-3/4 inch

Door Size

4' 6" (Interior); 3' 6" (Exterior)

Maximum Door Opening

110°

Product Height

3-1/2 Inch

Product Length

12-1/4 Inch

Product Width

2-1/4 Inch

ADA Compliant

YES

Finish Family

Dark Bronze

Included Components

Patented Green Dial Spring Force Indicator

Closer Arm Construction

Forged Steel

Product Material

Cast Iron

Standards

Grade 1 - ANSI A156.4, UL 10C, 100 Hour Salt Spray, Meets BAA - Buy American Act

Closer Arm Extension

11-1/2 Inch

Closer Arm Type

Spring Cush-n-Stop Arm

Closer Clearance

5-1/2 Inch

Closer Fluid Temperature Range

-30°F to 120°F

Closer Fluid

All Weather Fluid

Closer Piston Diameter

1-1/2 Inch

Closer Pinion Diameter

11/16 Inch

Function Family

Non Hold Open Door Closer

Mounting Hole Size

2-1/2" x 6"

Templating

Peel-n-Stick

Fastener Type

Self Reaming and Tapping Screws

Features

Full Complement Bearing; Double Heat-Treated Steel Pinion Journal

Warranty

30 year

Spring Size

1-5

Manufacturer Parent

Allegion

Closer Hold-Open

false

Sub-Series

DC_Surface Mounted Closers_lcn_25

Dimension

12-1/4" x 3-1/2" x 2-1/4"

Hold Open

No

Closer Type

Surface Mounted Closer

Hazardous Material

No

Alternate Part Number-1

182545

Material

Cast Iron

Mounting Style

Surface Mounting

Manufacturer Warranty

Limited 30 Year Warranty

UL Listing Type

UL 10C Rated

Finish code

695 (DKBRZ)

No of inners

1

Mounting Hole Pattern

2-1/2" x 6" Rectangular Mounting

Product Overview
4110 SeriesHeavy Duty Closer

The 4110 is LCN’s best performing heavy duty closer designed specifically for institutional and other rugged high traffic applications.

Specifications: Certifications:
  • Grade 1 - ANSI A156.4, UL 10C, ADA, 100 Hour Salt Spray, Meets BAA - Buy American Act
Body Construction:
  • Cast Iron Body
  • Full Complement Bearing
  • 1-1/2" Diameter Piston
  • 11/16" Diameter Double Heat Treated Pinion Journal
Fluid:
  • All Weather Fluid
Handing:
  • Handed
Templating:
  • Peel-n-Stick templates - 2-1/2" x 6" Mounting Hole Pattern
Size:
  • Adjustable Spring Size 1-5, or Sized 6, Includes Patented Green Dial
Warranty:
  • 30 years
Cover:
  • Plastic, Standard
  • Metal, Optional
Fasteners:
  • Self Reaming and Tapping Screws (SRT)
Mounting:
  • Parallel Arm (Push Side)
Arms:
  • Extra-Duty arm
Finishes/Colors/Powder Coat:
  • Aluminum (689)
  • Statuary Bronze (690)
  • Light Bronze (691)
  • Black (693)
  • Dark Bronze (695)
  • Brass (696)
  • Custom colors optional
  • Optional SRI primer - powder coat only
  • Optional plated finishes
