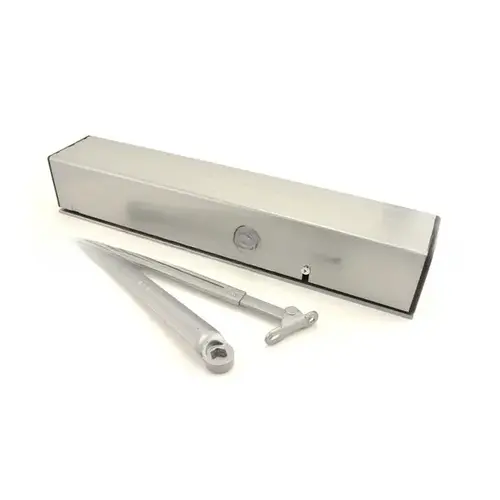

LCN 4822-REG-AL Handicap Accessible Surface Mounted Top Jamb Push Side Adjustable 2-5 Automatic Operator and TBSRT Thru Bolts 689 Aluminum Finish

Item #: 4822-REG-AL by LCN

See reviewsSee reviews
HURRY! Low in stock

$2,792.70

/each
SAVE UP TO 279.27

Buying in bulk

QUICK SHIPPING*Usually ships in 1 business day
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See How Watch Now
Large Order Quote

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Finish

Aluminum Painted

Spring Size

Adjustable 2-5

Function

Push Side Operator

Mount

Push Side

Finish Description

Aluminum Painted

Healthy Solution

Touchless

Product Type

Door Operator

Series

4820 Series

Warranty

2 Year

Aluminium Bottle Contents

Swinging

ProductType

Manual

healthy_solution

Touchless

Manufacturer Parent

Allegion

Minimum Top Rail Width

1-3/4 Inch

Closer Arm Type

Regular Arm

Sub-Series

4822-REG-AL

ADA Compliant

YES

Mounting Type

Top Jamb Push Side

Frame Reveal

4-1/2" to 8"

Function Family

Power Door Operator

Standards

ADA; Meets BAA

Overall Length

20 Inch

Features

Cast Iron Body; Full Complement Bearing

Fastener Type

Wood and Machine Screws

Minimum Door Width

24 Inch

For Door Width

24" to 54"

Finish Family

Aluminum

Dimension

20" x 3-1/2" x 3-5/16"

Hold Open

No

Closer Type

Automatic Operator

Hazardous Material

No

Product Overview
4820 Series Auto EqualizerPneumatically Powered Closer

The 4820 AUTO EQUALIZER™ is LCN’s pneumatically powered MULTI-DOOR solution. This low-energy automatic operator provides easy access for people with disabilities, or the elderly. Designed primarily for manual opening applications that occasionally require automatic opening.

Specifications: Certifications:
  • Grade 1 - ANSI A117.1, A156.19, UL 10C 228, ADA, 100 Hour Salt Spray, Meets BAA - Buy American Act
Body Construction:
  • Cast Iron Body
  • Full Complement Bearing
  • 1-1/2" Diameter Piston
  • 3/4" Diameter Double Heat Treated Pinion Journal
Fluid:
  • All Weather Fluid
Handing:
  • Non-Handed
Size:
  • Adjustable Spring Size 2-5
Warranty:
  • 2 years
Cover:
  • Metal, standard
Fasteners:
  • Wood and machine screw
Mounting:
  • Top Jamb (Push Side)
Arms:
  • Regular arm, standard
  • Long arm, optional
Finishes/Colors/Powder Coat:
  • Aluminum (689)
  • Statuary Bronze (690)
  • Light Bronze (691)
  • Black (693)
  • Dark Bronze (695)
  • Brass (696)
  • Custom colors optional
  • Optional SRI primer - powder coat only
  • Optional plated finishes
