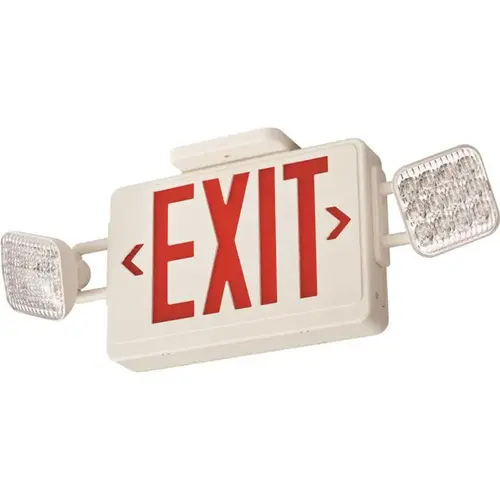

Lithonia Lighting ECRG SQ M6 Contractor Select ECRG SQ 20-Watt Equivalent 120-Volt/277-Volt Integrated LED White Exit/Emergency Combo Unit Color/Finish Family
Item #: ECRG SQ M6 by Lithonia Lighting
UPC #: 194994900467
See reviewsSee reviews
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
Material
Thermoplastic
Warranty
2-year Limited Warranty
Pack Size
1
Manufacturer Warranty
2-year Limited Warranty
Actual Color Temperature (K)
6200
Certifications and Listings
UL Listed
Collection Name
ECRG
Color/Finish Family
White
Lumens
113
Product Depth (in.)
19.09
Product Height (in.)
7.95
Product Width (in.)
4.33
Compatible Bulb Type
Integrated LED
Color Temperature
Daylight
Connection Type
Hardwired
UNSPSC
39111707
Voltage
120 - 277 V
Wattage
3.5 W
Package Quantity
1
Mounting Style
Back Mount, End Mount, Top
UL Listed
Yes
Includes
square lamp heads
Number of Faces
1
ADA Compliant
No
Battery Backup
True
Certifications/Listings
UL Listed
Legend Color
Red
Battery Type
NiMH
Housing Color
White
MADE IN THE USA
No
Assembled Product Height
7.24 in.
Assembled Product Width
11.63 in.
GSA Approved
No
Assembled Product Length
11.63 in.
AbilityOne
No
Number of Lamp Heads
2
TAA/BAA Compliant
No
Light Bulb Technology
LED
Power Source
Hardwired
Commercial/Residential
Commercial/Residential
Indoor/Outdoor
Indoor/Outdoor
Photoluminescent
False
Lamp Included
True
Product Overview
The Lithonia Lighting Basics ECRG, is a combination of exit and emergency lighting. The ECRG is ideal for safely illuminating the path of egress above-the-door in small spaces at lower mounting heights while providing 90-minutes of emergency power. Contains ability to switch between red and green letters.
- ECRG LED exit sign has an internal switch for red or green color selection
- Offered in the new bright white thermoplastic housing, the EXRG has a classic design with updated features, this fully assembled single-face exit comes with an extra faceplate and red and green panel inserts for ultimate field configurability
- Dual-voltage 120-Volt/277-Volt, 60Hz
- UL Listed, meets all applicable requirements for UL 924, NFPA 101 (current life safety code), NFPA 70 (NEC), FCC title 47, part 15, subpart B and OSHA, indoor damp location 50°F to 104°F (10°C to 40°C) listed
- Mounting pattern on canopy (top and side mount) and back plate (back mount) fits most standard size junction boxes
- Typical life of the LED lamp is 10-years
- Provides a minimum of 90-minutes illumination for the rated wattage upon loss of AC power to meet code required emergency lighting
- Battery: 3.6-Volt maintenance-free, rechargeable, nickel metal hydride
- 2-year limited warranty
