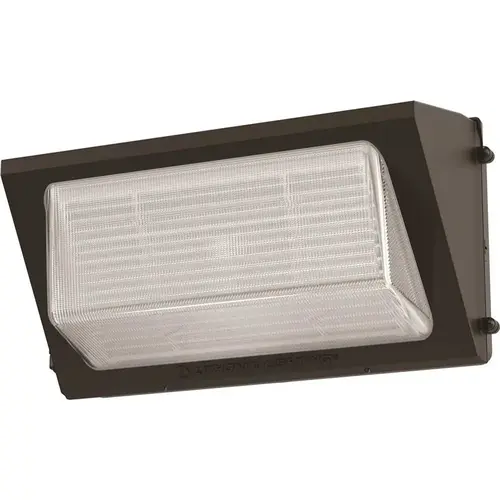

Lithonia Lighting TWR1 LED ALO SWW2 UVOLT PE DDBTXD Contractor Select TWR1 250- Watt Equivalent Integrated LED Dark Bronze Wall Pack Light, Adjustable Lumens and CCT
Item #: TWR1 LED ALO SWW2 UVOLT PE DDBTXD by Lithonia Lighting
UPC #: 196183389947
See reviewsSee reviews
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
Warranty
5-Year Limited Warranty
Color
Dark Bronze
Pack Size
1
Manufacturer Warranty
5-Year Limited Warranty
Certifications and Listings
cULus Listed
Color/Finish Family
Bronze
Fixture Color Family
Bronze
Included
Hardware Included
Product Height (in.)
9.4
Product Length (in.)
7.2
Product Width (in.)
13.2
Color Temperature
Adjustable White
Features
Dimmable, Dusk to Dawn
Product Type
Wall Pack
Voltage
120 - 347 V
Finish
Bronze
Wattage
59 W
Power Source
Electric
Package Quantity
1
UL Listed
No
ADA Compliant
No
Dimmable
Non Dimmable
Lumens
2300/5300/8500 LM
Number of Lights
1
Minimum Operating Temperature
-40 C
Bulb Base Type
Integrated LED
Certifications/Listings
UL Listed
Fixture Type
Wall Pack
IP Rating
IP65
Housing Material
Metal
UNSPSC
39111613
MADE IN THE USA
No
Resistance Features
Weather Resistant
Assembled Product Height
9.4 in.
Assembled Product Width
13.2 in.
GSA Approved
No
Assembled Product Length
7.2 in.
Title 24 Compliant
False
AbilityOne
No
TAA/BAA Compliant
Yes
Light Bulb Technology
LED
DLC Certified
DLC Certified
Fixture Sensor Type
Dusk to Dawn
ENERGY STAR® Qualified
No
Product Overview
The TWR1 LED wall pack offers a classic appearance with a traditional shape and is loaded with modern features including three adjustable light outputs (ALO), three switchable color temperatures (SWW) 30/40/50K CCT and a switchable dusk-to-dawn photocell. TWR1 provides ultimate versatility with 18 configurations in one SKU, making on-the-spot reconfiguring quick and easy. TWR1 is powerful yet efficient, delivering 2,300 - 8,500 lumens and capable of replacing up to a 250w HID while saving up to 86% in energy costs. Offering an expected service life of more than 20 years, the TWR1 LED eliminates frequent lamp and ballast replacements associated with traditional technologies. Designed to provide a cost-effective, energy-efficient solution when replacing the entire site or only a portion of the buildings wall packs. TWR1 is the ideal choice for outdoor wall-mounted applications including loading areas, building facades, driveways, and parking areas.
- Design: the lithonia lighting twr1 LED wall pack is equipped with adjustable lumen output (up to 8,500 Lumens), switchable CCT (30K/40K/50K), and a switchable photocell allowing the contractor to customize to a level perfectly suited for the job site
- Energy savings: long-life LEDs, coupled with a high-efficiency driver, provide superior illumination and extended service life with energy savings of up to 86% when replacing HID wall packs
- Photocell: switchable photocell for dusk-to-dawn operation
- Ratings: UL Listed to U.S. and Canadian safety standards for wet locations, IP65 rated, DesignLights Consortium (DLC) qualified product
- Voltage: UVOLT for 120-Volt to 347-Volt (50 Hz/60 Hz)
- hours of life: LEDs maintain 90% of light output at 100,000 hours of service or L90/100,00- hours
- Installation: designed for wall mounting above four feet from ground. housing is configured for mounting directly over a standard 4 in. outlet box (by others) or for surface wiring via any of four convenient in. threaded conduit entry hubs
- WARRANTY: 5-year limited warranty
- Dimensions: 13.2 in. W x 9.4 in. H x 7.2 in. D
- Adjustable lumen output: 2,300 Lumens, 5,300 Lumens, 8,500 Lumens
- Switchable color temperature: 3000K 4000K 5000K
- CONSTRUCTION: Die-cast aluminum housing & borosilicate glass lens
