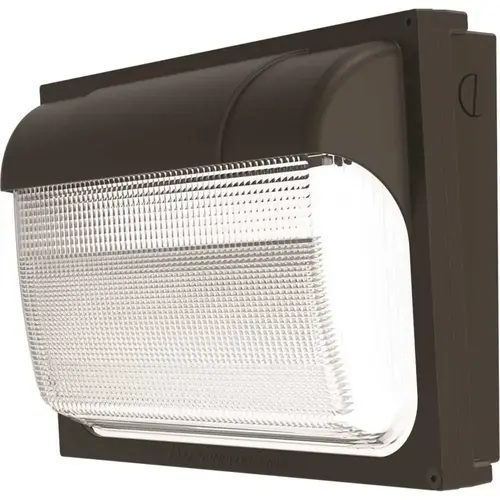

Lithonia Lighting TWX2 LED ALO 50K MVOLT DDBTXD Contractor Select TWX2 250-Watt Equivalent Integrated LED Dark Bronze Wall Pack Light, Adjustable Lumen Output 5000K
Item #: TWX2 LED ALO 50K MVOLT DDBTXD by Lithonia Lighting
UPC #: 194994620495
See reviewsSee reviews
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
Glass/Lens Type
Clear
Included
Hardware Included
Lumens
6850
Product Width (in.)
13
Fixture Material
Aluminum
Actual Color Temperature (K)
5000
Compatible Bulb Type
Integrated LED
Fixture Color Family
Bronze
Certifications and Listings
CSA Certified
Range (ft.)
0
Product Height (in.)
9.0
Product Type
Wall Packs
Pack Size
1
Features
Switch Controlled, Weather Resistant
Product Length (in.)
4.5
Product Depth (in.)
4.5
Warranty
5-Year Limited Warranty
Color Temperature
Daylight
Manufacturer Warranty
5-Year Limited Warranty
UNSPSC
39111613
ENERGY STAR® Qualified
No
MADE IN THE USA
No
Finish
Bronze
Power Source
Electric
Package Quantity
1
Wattage
54 W
IP Rating
IP65
UL Listed
No
Title 24 Compliant
False
Dimmable
Dimmable
Light Bulb Technology
LED
Color
Dark Bronze
Number of Lights
1
Bulb Base Type
Integrated LED
AbilityOne
No
ADA Compliant
No
Fixture Type
Wall Pack
Voltage
120 - 277 V
Assembled Product Height
9 in.
Certifications/Listings
CSA Certified
Housing Material
Metal
Assembled Product Width
13 in.
GSA Approved
No
DLC Certified
Not DLC Certified
Resistance Features
Weather Resistant
TAA/BAA Compliant
Yes
Product Overview
TWX LED wall pack family, a ground-up design that has the low initial cost customers demand while providing superior performance and a traditional form. The TWX2 LED is energy efficient saving up to 82% in energy costs when replacing a metal halide luminaire. The Adjustable Light Output (ALO) feature allows the contractor to set the light output during installation, to a level perfectly suited for the job site. The TWX2 LED ALO luminaires can replace anything from a 70-Watt to 250-Watt metal halide luminaire.
- Adjustable light output maximizes flexibility in the field
- TWX2 LED is energy efficient saving up to 82% in energy costs when replacing a metal halide luminaire
- Hardwired on/off capability only
- CSA certified to US and Canadian standards, listed as a DesignLights Consortium (DLC) qualified product and IP65 rated for outdoor applications
- MVOLT driver operates on any line voltage from 120-Volt to 277-Volt (50 Hz/60 Hz) and can be mounted directly over a standard electrical junction box or back wiring can be connected and stored in the internal compartment
- Light engine(s) configurations consist of high-efficacy LEDs where the advanced optical design uses both reflector and refractor technologies that work together to create superior illumination and further throw, getting the light where it is needed
- Exterior painted parts are protected by a zinc-infused super durable TGIC thermoset powder coat finish providing superior resistance to corrosion and weathering withstanding extreme climate changes without cracking or peeling
- 5-year limited warranty
