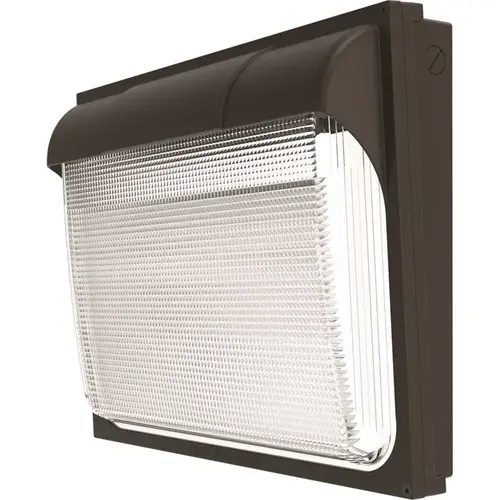

Lithonia Lighting TWX3 LED ALO 40K MVOLT DDBTXD Contractor Select 400-Watt Equivalent Integrated LED Dark Bronze Wall Pack Light, Adjustable Lumen Output 4000K
Item #: TWX3 LED ALO 40K MVOLT DDBTXD by Lithonia Lighting
UPC #: 194994620594
See reviewsSee reviews
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
Warranty
5-Year Limited Warranty
Pack Size
1
Manufacturer Warranty
5-Year Limited Warranty
Actual Color Temperature (K)
4000
Certifications and Listings
CSA Certified
Fixture Color Family
Bronze
Fixture Material
Aluminum
Glass/Lens Type
Clear
Included
Hardware Included
Lumens
13850
Product Depth (in.)
5.0
Product Height (in.)
14.0
Product Length (in.)
5.0
Product Width (in.)
18
Range (ft.)
0
Compatible Bulb Type
Integrated LED
Color Temperature
Cool White
Features
Switch Controlled, Weather Resistant
UNSPSC
39111613
Voltage
120 - 277 V
Finish
Bronze
Wattage
108 W
Color
Dark Bronze
Power Source
Electric
Package Quantity
1
UL Listed
No
ADA Compliant
No
Dimmable
Dimmable
Number of Lights
1
Bulb Base Type
Integrated LED
Certifications/Listings
CSA Certified
Fixture Type
Wall Pack
IP Rating
IP65
Housing Material
Metal
MADE IN THE USA
No
Resistance Features
Weather Resistant
Assembled Product Height
14 in.
Assembled Product Width
18 in.
GSA Approved
No
Assembled Product Length
5 in.
Title 24 Compliant
False
AbilityOne
No
TAA/BAA Compliant
Yes
Light Bulb Technology
LED
DLC Certified
Not DLC Certified
ENERGY STAR® Qualified
No
Product Overview
TWX LED wall-Pack family, a ground-up design that has the low initial cost customers demand while providing superior performance and a traditional form. The TWX3 LED is energy efficient saving up to 84% in energy costs when replacing a metal halide luminaire. The Adjustable Light Output (ALO) feature allows the contractor to set the light output during installation, to a level perfectly suited for the job site. The TWX3 LED ALO luminaires can replace anything from a 100-Watt to 400-Watt metal halide luminaire.
- Adjustable light output maximizes flexibility in the field
- TWX3 LED is energy efficient saving up to 84% in energy costs when replacing a metal halide luminaire
- Hardwired on/off capability only
- CSA certified to US and Canadian standards, listed as a Design Lights Consortium (DLC) qualified product and IP65 rated for outdoor applications
- MVOLT driver operates on any line voltage from 120-Volt to 277-Volt (50 Hz/60 Hz) and can be mounted directly over a standard electrical junction box or back wiring can be connected and stored in the internal compartment
- Light engine(s) configurations consist of high-efficacy LEDs where the advanced optical design uses both reflector and refractor technologies that work together to create superior illumination and further throw, getting the light where it is needed
- Exterior painted parts are protected by a zinc-infused super durable TGIC thermoset powder coat finish providing superior resistance to corrosion and weathering withstanding extreme climate changes without cracking or peeling
- 5-year limited warranty
