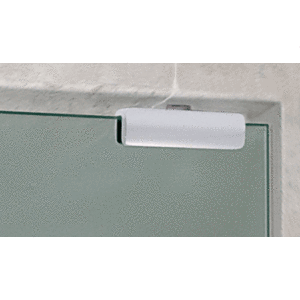

CRL MA04 Madrid Series Soffit Sleeve Mount Kit
Item #: MA04 by CR Laurence
See reviews See
reviews
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See How
Watch Now
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
- Works with All Finishes of Madrid Hinge
- Soffit Sleeve Mount Kit
- These Frameless Shower Door Hinges are Notch-Free
- No Glass Fabrication Required (No Holes, No Cut-Outs)
- Top and Bottom Mount Installation Exposes More Glass, Less Hardware
- Use Monolithic Tempered Glass
Glass Thickness
Other
Mounting Type
Wall Mount
CRL Madrid Series Soffit Sleeve Mount Kit is an economical tool that blends with any bathroom decor to offer an elegant and beautiful appeal. It come in three mounting options. Installation process is quite simple as no glass fabrication such as holes or cut out is required. Madrid's pivot can be mounted in a Header, in a Wall Block, or in a Soffit Sleeve. It can be customized to desired finishes also. Soffit sleeve mount kit includes: Soffit Sleeve Mounting Screw. Sleeve Requires 5/8" (16 mm) Hole. Soffit Kit Works with All Finishes of Madrid Hinges. Specifications: Glass Thickness: 5/16" (8 mm) or 3/8" (10 mm) Tempered Safety Glass Construction: Solid Brass Hinge Swings: Full Rotation Closing Type: Precise Closing to 0º Maximum Door Size: Width 36" (914 mm); Weight 120 Lbs. (54 kg). Do not exceed either width or weight. Includes: Gaskets and Mounting Hardware Using two hinges with 5/16" or 3/8" glass (8 or 10 mm) the hinge will hold up to 120 lbs. (54 kg) with a maximum door width of 36" (914 mm). IMPORTANT ORDERING TIPS - PLEASE READ: (1) Choose either the MA01 for 3/8" (10 mm) thick glass, or the MA05 for 5/16" (8 mm) thick glass. This will give you the basic Hinge Kit for both top and bottom. (2) Determine the mounting application for the top of the door, and select either the MA02 (Header Mount Kit), MA03 (Wall Block Mount Kit), or MA04 (Soffit Sleeve Mount Kit). Each of these Kits work with either 3/8" (10 mm) or 5/16" (8 mm) thick glass. Summary: You have ordered properly for one door when you have selected one each of either the MA01 or MA05 Hinge Kits, plus only one of the MA02, MA03 or MA04 Mount Kits. Important Notes NOTE: All C.R. Laurence Hinges in this catalog are designed for residential or hotel shower use. If hinges are to be used for other than their intended purpose, approval must be obtained from the C.R. Laurence Technical Sales Department. NOTE: Use only the template included with our hinge. Cut-out dimensions for CRL hinges may not match those of other brands. DS 07/22/2016
From Manufacturer
The CRL Madrid Series of Hinges gives the installer three mounting options. Because there are no holes to drill, or notches to cut in the glass, the Madrid is also one of the easiest hinges to mount. The Madrid's pivot can be mounted in a Header, in a Wall Block, or in a Soffit Sleeve. Take your choice, they can all be installed simply and quickly. Madrid is about choices, and you'll discover its elegant lines will blend with most any bathroom décor. There are Madrid Hinge Kits and Mounting Kits in eight of our most popular finishes, and custom finishes are available on special order.
SOFFIT SLEEVE MOUNT KIT INCLUDES: Soffit Sleeve Mounting Screw. Sleeve Requires 5/8" (16 mm) Hole. Soffit Kit Works with All Finishes of Madrid Hinges.
SPECIFICATIONS:
Glass Thickness: 5/16" (8 mm) or 3/8" (10 mm) Tempered Safety Glass
Construction: Solid Brass
Hinge Swings: Full Rotation
Closing Type: Precise Closing to 0º
Maximum Door Size: Width 36" (914 mm); Weight 120 Lbs. (54 kg). Do not exceed either width or weight.
Includes: Gaskets and Mounting Hardware
Using two hinges with 5/16" or 3/8" glass (8 or 10 mm) the hinge will hold up to 120 lbs. (54 kg) with a maximum door width of 36" (914 mm).
IMPORTANT ORDERING TIPS - PLEASE READ:
(1) Choose either the MA01 for 3/8" (10 mm) thick glass, or the MA05 for 5/16" (8 mm) thick glass. This will give you the basic Hinge Kit for both top and bottom.
(2) Determine the mounting application for the top of the door, and select either the MA02 (Header Mount Kit), MA03 (Wall Block Mount Kit), or MA04 (Soffit Sleeve Mount Kit). Each of these Kits work with either 3/8" (10 mm) or 5/16" (8 mm) thick glass. Summary: You have ordered properly for one door when you have selected one each of either the MA01 or MA05 Hinge Kits, plus only one of the MA02, MA03 or MA04 Mount Kits.Important Notes
SOFFIT SLEEVE MOUNT KIT INCLUDES: Soffit Sleeve Mounting Screw. Sleeve Requires 5/8" (16 mm) Hole. Soffit Kit Works with All Finishes of Madrid Hinges.
SPECIFICATIONS:
Glass Thickness: 5/16" (8 mm) or 3/8" (10 mm) Tempered Safety Glass
Construction: Solid Brass
Hinge Swings: Full Rotation
Closing Type: Precise Closing to 0º
Maximum Door Size: Width 36" (914 mm); Weight 120 Lbs. (54 kg). Do not exceed either width or weight.
Includes: Gaskets and Mounting Hardware
Using two hinges with 5/16" or 3/8" glass (8 or 10 mm) the hinge will hold up to 120 lbs. (54 kg) with a maximum door width of 36" (914 mm).
IMPORTANT ORDERING TIPS - PLEASE READ:
(1) Choose either the MA01 for 3/8" (10 mm) thick glass, or the MA05 for 5/16" (8 mm) thick glass. This will give you the basic Hinge Kit for both top and bottom.
(2) Determine the mounting application for the top of the door, and select either the MA02 (Header Mount Kit), MA03 (Wall Block Mount Kit), or MA04 (Soffit Sleeve Mount Kit). Each of these Kits work with either 3/8" (10 mm) or 5/16" (8 mm) thick glass. Summary: You have ordered properly for one door when you have selected one each of either the MA01 or MA05 Hinge Kits, plus only one of the MA02, MA03 or MA04 Mount Kits.Important Notes
NOTE: All C.R. Laurence Hinges in this catalog are designed for residential or hotel shower use. If hinges are to be used for other than their intended purpose, approval must be obtained from the C.R. Laurence Technical Sales Department.NOTE: Use only the template included with our hinge. Cut-out dimensions for CRL hinges may not match those of other brands.
