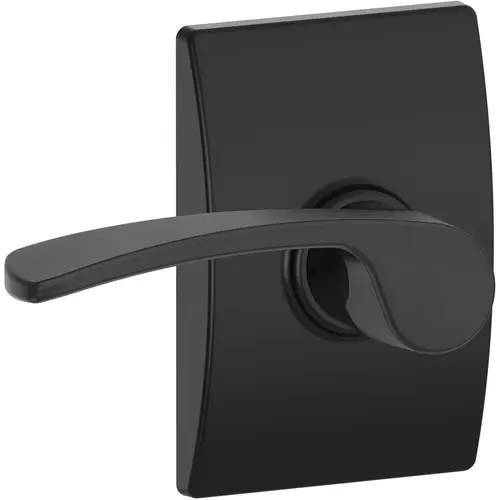

Schlage Residential F10 MER 622 CEN F10MER622CEN 16-080 10-027 Merano / Century Passage - Matte Black
Item #: F10 MER 622 CEN by Schlage Residential
UPC #: 043156481446
See reviewsSee reviews
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
- Non-Locking - Ideal for Closets and Rooms Where Locking is Not Needed
- Reversible Handing
- Applications: Residential single- and multi-family doors
- Certifications: ANSI A156.2, 1996, Series 4000 Grade 2
- Easy 3-Step Installation, Only a Screwdriver Needed
- Lifetime Mechanical & Finish Warranty
- Quality Materials and Construction for Exceptional Security
- Quality Finishes Coordinate with Plumbing and Lighting
- U.L. Listed: Locks for up to three-hour fire doors available
- Door thickness range: 1-3/8" to 1-3/4" (35mm-44mm) standard
- Certified Commercial Grade 2
- Hall/ Closet (Passage) Function - - Both Knobs/Levers Always Unlocked
- Backset: Universal latch standard, fits either 2-3/8" (60mm) or 2-3/4" (70mm) backsets. 5" (127mm) backset available
- ADA compliant: Yes
Function
Passage/Hall/Closet
Finish
Matte Black
Series
F Series
Backset
2-3/8 Inch or 2-3/4 Inch
Strike
Full Lip 2-1/4 Inch, Radius Corner
Design
Merano Lever With Century Rose
Color
Flat Black Coated
Color Code
622/US19/MTBK
Grade
ANSI/BHMA Grade 2
Finish Description
Black
Lever Style
MER-Merano
Rose/Escutcheon Trim
CEN-Century
Product Type
Cylindrical Lock
Handing
Reversible
Application
Residential Single and Multi-Family Doors
Warranty
Limited Lifetime Mechanical and Finish Warranty
Door Thickness
1-3/8" to 1-3/4"
ANSI Function
F75
Latch Type
Spring
Strike Number
10-027
Strike Type
Radius, Full Lip
ADA Compliant
YES
Finish Family
Black
Included Components
Passage levers, roses, latch, strike, mounting hardware
Door Cross Bore
2.125 Inch
Product Material
Zinc
Strike Name
Round Corner Full Lip
Standards
ANSI/BHMA A156.39-2015; UL Listed; ADA
Faceplate Dimension
1" x 2-1/4"
Door Preparation
Cross Bore 2-1/8"; Edge Bore 7/8"
Function Description
Latch retracted by knobs/levers at all times
For Door Thickness
1-3/8" to 1-3/4"
Function Family
Passage/Hall/Closet
Features
Non-Locking Ideal For Closets And Rooms Where Locking Is Not Needed; Easy 3-Step Installation, Only A Screwdriver Needed; Quality Materials And Construction For Exceptional Security; Quality Finishes Coordinate With Plumbing And Lighting
Bolt Throw
1/2 Inch
Strike Size
1-5/8 x 2-1/4 Inch
Manufacturer Parent
Allegion
Door Edge Bore
1 Inch
Lever Style Family
Straight Curved Lever
Sub-Series
F10-MER-CEN
Collection
Merano
Package Height
3.5"
Package Length
7"
Package Width
6"
Item Weight
2.5 lbs
Dimension
4-9/32" Lever and 2-3/4" Projection with 2-3/4" x 4-1/8" Rose
Material
Zinc
Manufacturer Warranty
Limited Lifetime Mechanical and Finish Warranty
Rose/Escutcheon Design
Century Rose
Door Range
1-3/8" to 1-3/4"
Hazardous Material
No
Strike Dimension
2-1/4" x 1-5/8" x 1-1/8" Lip
Cross Bore Size
2-1/8" Bore
Finish code
622
Latch Faceplate Dimension
1" x 2-1/4"
Lever Knob Design
Merano Lever
No of inners
1
Product Overview
The Schlage Interior Handleset Merano Lever and Interior Single Cylinder Deadbolt Thumbturn in Matte Black is perfect for use on the interior of your front door. The Merano lever has a graceful curve that makes it as delicate as it is chic, and looks especially elegant when finished in Matte Black. Plus, it's been designed and tested with strength and durability in mind.
