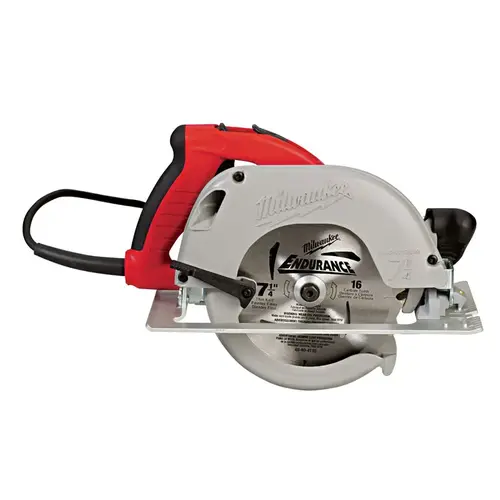

Milwaukee 6390-21 Circular Saw, 15 A, 7-1/4 in Dia Blade, 5/8 in Arbor, 50 deg Bevel
Item #: 6390-21 by Milwaukee
UPC #: 045242049585
See reviewsSee reviews
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
- New exclusive TILT-LOK™ main handle adjusts to the work or most comfortable work position
- 10.4 lb net weight, lightest 7-1/4 in, 3.25 max hp saw reduces operator fatigue, easier to handle
- 15 A, 3.25 hp peak motor, most powerful circle saw cuts tough materials including headers, Microllam®s and wet lumber with ease
- Wide, clear sight line for great blade visibility from either side
Tools Product Type
Power Tool
Standard Color Family
Red
Amperage
15
Power Tool Product Type
Corded
Product Width (in.)
13.75
Speed
5800 RPM
Certifications and Listings
1-UL Listed, CSA Listed, ETL Listed
Product Height (in.)
8.75
Cordless/ Corded
Corded
Blade Diameter (in.)
7-1/4
Product Depth (in.)
8.25
Cord Length (ft.)
9
Warranty
5 year limited
Pack Size
1
Cuts Through
Wood
Maximum Speed (rpm)
5800
Returnable
Yes
Arbor Size
5/8"
Defective Code
B
Electric Brake
Yes
Bevel Capacity
50 deg
Corded or Cordless
Corded
Maximum Cutting Depth at 45 Degrees
1-13/16"
Blade Location
Right
Spindle Lock
Yes
Depth Adjustment
Yes
Blade Change
Keyed
Cord Length
9 ft
Laser Guide
No
Diameter
7-1/4"
Product Type
Circular Saw
Maximum Cutting Depth at 90 Degrees
2-7/16"
Brushed or Brushless
Brushed
Maximum Speed
5800 rpm
AMPS
15 amps
Tool Weight
10.4 lb
Maximum Cutting Depth at 50 Degrees
1-11/16"
Each Weight
17.800 LB
Certifications
UL Listed
Velocity
C
Hazardous Material
No
UNSPSC
27112709
Alternative UPC
045242049585
Handle Type
Soft-Grip
Cutting Depth
1-13/16 in at 45 deg 1-11/16 in at 50 deg 2-7/16 in at 90 deg
Amp Rating
15 A
Nomenclature
6390-21 TILTLOCK CIRC SAW7-1/4
Speed Rating
5800 rpm
Blade Diameter
7-1/4"
Sub Brand
TILT-LOK
Vendor Internet Sales Policy
Sale of this product on third-party online marketplaces (eg. Amazon, eBay, Walmart) is prohibited.
Voltage
120 AC/DC
Length
13.75
Weight
10.4
Power Source
Corded - 9 ft Fixed
Blade
7-1/4 in
Dimensions
13-3/4 In.
Case Included
Yes
Weight
10.2 Lb.
Maximum Cut Depth at 45 Degrees
1-13/16 In.
Maximum Cut Depth at 90 Degrees
2-7/16 In.
Control Type
ON/OFF
Nominal Voltage
120 V
Voltage Type
AC/DC
Max: Cutting Angle
50° Bevel
Speed [Max]
5,800 rpm
Amps [Nom]
15 A
Arbor Diam [Nom]
5/8 in
Frequency [Nom]
60 Hz
Power Cap. [Nom]
3 1/4 hp
Bit/Blade Mounting Type
Arbor
Cutting Cap. 2
2 7/16 in (90° crosscut); 1 13/16 in (45° bevel)
Drive Gearing
Helical Gearing
Horse Power
3.25
Vendor Drop Ship
N
Height
14.05
Width
19.05
ECCN
EAR99
Country Origin Code
CN
MADE IN THE USA
No
Package Quantity
1
Wattage
1800
UL Listed
Yes
Maximum Depth of Cut @ 90 Degrees
2.43 in.
Color
White
Includes
Tool Case
Body Material
Plastic
AbilityOne
No
ADA Compliant
No
Saw Drive Type
Sidewinder
Horsepower
3.25
Features
Keyless Blade Change
Assembled Product Width
13.75 in.
Assembled Product Weight
10.4 lb.
GSA Approved
No
Maximum Depth of Cut @ 45 Degrees
1.81 in.
TAA/BAA Compliant
Yes
Product Overview
SAW CIRC TILTLOCK 15A 7-1/4IN
Specifications:
Specifications:
Includes: (1) Blade Wrench (1) Carrying Case
The TILT-LOK handle on Milwaukee 6390-20 is the most revolutionary concept for circular saws in years. The eight position cushioned top handle adjusts to any cutting application maximizing comfort and control. Weighing in at 10.4 lb and delivering 3-1/4 hp maximum power, this tool offers the outstanding power to weight ratio in the industry. The blade can bevel to 50 deg and offers great visibility and a clear sight line from either side. Helical steel gears and a 22 A switch are just two of the features that ensure the Milwaukee's reputation for durability.
