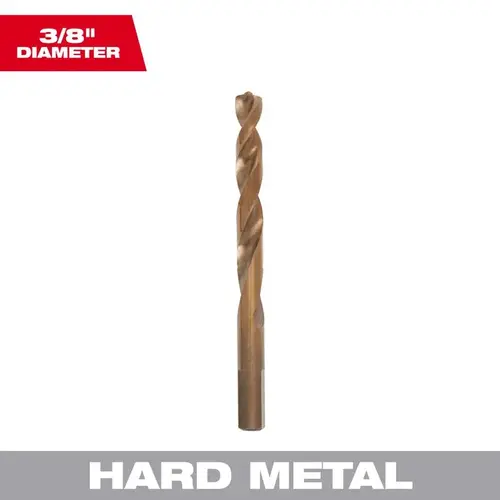

Milwaukee 48-89-2321 Jobber Drill Bit, 3/8 in Dia, 5-1/8 in OAL, Twist Flute, 3-Flute, 3/8 in Dia Shank Bright
Item #: 48-89-2321 by Milwaukee
UPC #: 045242188369
See reviewsSee reviews
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
- Up to 10X life vs black oxide
- RED HELIX™ design for rapid chip removal
- 135 deg split point for precision start
- Chip Breaker decreased heat build-up
- Secure-Grip prevents bit from slipping in chuck
Material
Cobalt
Drill Bit Size
0.375 in.
Shank Diameter
3/8"
Assembled Depth (in.)
3/8
Assembled Height (in.)
3/8
Assembled Width (in.)
5.12
Bit Diameter
3/8 in
Bit Length (in.)
5
Bit Material
Cobalt
Bit Style
Spiral
Drill Bit Type
Twist
Drill Bit Type(s) Included
Twist
Drilling Length
3.625 in.
Individual/Set
Individual
Material Application
Aluminum, Cast Iron, Duct/Sheet Metal, Stainless Steel, Steel
Power Tool Product Type
Drill Bits & Router Bits
Shank Style
3-Flat
Surface Application
Metals
Tools Product Type
Power Tool
Shank Type
3-Flat
Finish
Bright
Quick Change Shank
No
Number of Flutes
3
Shank Length
1-1/2"
Point Angle
135 deg
Overall Length
5-1/8"
Flute Type
Twist
Diameter
3/8"
Nomenclature
48-89-2321 COBALT BIT 3/8IN
Cutting Direction
Right Hand
Flute Length
3-5/8"
Point Type
Split
Applicable Materials
Metal Plastic PVC Stainless Steel Wood
Style
Thunderbolt
Drill Size
3/8"
Number in Package
1 pc
Packaging Type
Carded
Defective Code
A
Each Weight
0.110 LB
Hazardous Material
No
Returnable
Yes
Sub Brand
Red Helix
Velocity
A
Vendor Internet Sales Policy
Sale of this product on third-party online marketplaces (eg. Amazon, eBay, Walmart) is prohibited.
Product Type
Drill Bit
Length
5.12 In.
Drilling Depth
3-5/8 In.
Tip Angle
135 Degree
Standards
ANSI
Series
48-89-23
Drill Bit Material
Cobalt
Spiral Type
Regular
Tool Application
Drilling
Coating/Finish
Cobalt
Coolant Through
No
Double Margin
No
Drill Bit Grade
General Purpose
Drill Bit Size (Decimal Inch)
0.3750
Drill Bit Size (Inch)
3/8
Drill Bit Size Range (Decimal Inch)
0.3500 - 0.4000
Drill Point Angle
135 degrees
Flute By Diameter Ratio
10xD
Flute Length (Decimal Inch)
3.6250
Flute Length (Inch)
3-5/8
Maximum Drilling Depth (Decimal Inch)
3.6250
Maximum Drilling Depth (Inch)
3-5/8
Number of Flats
3
Overall Length (Decimal Inch)
5.1200in
Overall Length (Inch)
5
Primary Workpiece Material
Stainless Steel
Primary Workpiece Material Code
M
Shank Diameter (Decimal Inch)
0.3750
Shank Diameter (Inch)
3/8in
Shank Length (Decimal Inch)
1.4950in
Tool Performance
General Purpose
UNSPSC Code
23241634
Vendor Drop Ship
N
Specification Designation
ANSI
Web Configuration
Tapered
Web Thinning
Web-Thinned
Height
1.87
Width
6.75
ECCN
EAR99
Country Origin Code
KR
Product Overview
DRILL BIT BIT 3/8IN COBALT
Specifications:
Specifications:
Applicable Materials: Metal Plastic PVC Stainless Steel Wood
Milwaukee Cobalt RED HELIX drill bits are engineered for extreme durability and long life in hard metal applications. Designed with a Variable Helix that includes an aggressive 35 deg helix angle, which ends at 15 deg, the cobalt bits with RED HELIX provide Rapid Chip Removal limiting heat build-up to Stay Sharper Longer. The 135 deg split point tip delivers a precision start and prevents walking for fast, accurate holes. Ideal for tough applications and provide up to 10X life vs black oxide drill bits but can be used in all twist drilling applications.
