Milwaukee 48-89-9224 6 Piece Step Drill Bit Set, 1/4 in to 3/8 in dia, High Speed Steel Black Oxide
Item #: 48-89-9224 by Milwaukee
UPC #: 045242307777
See reviewsSee reviews
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
Bit Style
Multi-Diameter
Individual/Set
Set
Tools Product Type
Power Tool
Drill Bit Type
Step
Power Tool Product Type
Drill Bits & Router Bits
Product Width (in.)
8
Drill Bit Type(s) Included
Step
Shank Style
3-Flat
Drilling Length
3.1875 in.
Product Height (in.)
2
Drill Bit Size
0.875 to 1.375 in.
Material
Steel
Product Depth (in.)
11.73
Bit Material
Black Oxide
Surface Application
Metals
Pack Size
1
UNSPSC
27112800
No of Flutes
6
Shank Diam [Nom]
1/4 in; 3/8 in
Overall Length
3.1 / 3 / 2.03 / 2.2 / 3.3 / 2.95
Contents
(1) Carrying Case
Flute Length
2.1 / 2 / 1.03 / 1.2 / 2.3 / 1.95
Tool Material
High-Speed Steel
Series
Wire
System of Measurement
Inch
Tool Application
Metalworking
Coating/Finish
Oxide
Drill Bit Set Type
Step Drill Bits
Material Set Type
Metalworking
Maximum Drill Bit Size (Frac Inch)
1-1/8
Maximum Drill Bit Size (Inch)
1.1250
Maximum Hole Size
1.125 in
Minimum Drill Bit Size (Frac Inch)
1/8
Minimum Drill Bit Size (Inch)
0.1250
Number of Flats
3
Product Service Code
5133
Step Increments
1/16
UNSPSC Code
27112800
Vendor Drop Ship
N
Drill Bit Sizes Included (Inch)
1/8
Minimum Hole Size (Inch)
0.13
Specification Designation
ANSI
Product Overview
Milwaukee Step Drill Bits with JAM-FREE Performance feature a dual-flute design delivering up to 2X faster hole times, up to 4X longer life and up to 50% more holes per battery charge than competitors. Ideal for drilling small and large-diameter holes in steel and plastic, these bits are Optimized for Cordless Drills in High Speed. The Rapid Strike tip allows for a fast and accurate start that generates less heat, resulting in longer bit tip life. Black oxide coating also enhances durability, hole quality and bit life. For user convenience and accuracy, each bit has laser-engraved reference marks you can see while drilling. The 3-flat Secure-Grip shank ensures a solid connection with the drill chuck. The Step Drill Bit 6-Piece Set includes bits #1 (48-89-9201), #4 (48-89-9204), #6 (48-89-9206), #7 (48-89-9207), #8 (48-89-9208) and #9 (48-89-9209). Jam-Free Performance in high speed with most professional 18 volt cordless drills with lithium-ion battery technology.
- Jam-free performance: dual-flute design optimized for cordless drills in high speed provides greater speed and control
- Rapid strike tip: creates fast, accurate starts and generates less heat
- Laser-engraved reference marks: easily stop on any whole size
- 3-flat secure-grip shank: reduces bit slippage in the chuck

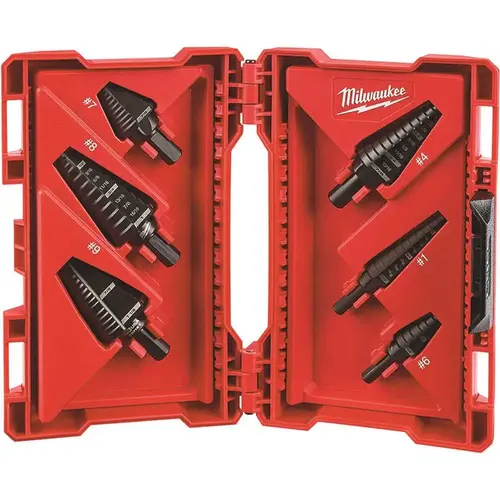

- Includes: (1) #9 Step Drill Bit, 7/8 in. and 1-1/8 in. (48-89-9209) , (1) #8 Step Drill Bit, in. “ 1 in. by 1/16 in. (48-89-9208) , (1) #7 Step Drill Bit, 7/8 in. Single Hole (48-89-9207) , (1) #6 Step Drill Bit, 3/8 in. and in. by 1/16 in. (48-89-9206) , (1) #4 Step Drill Bit, 3/16 in. - 7/8 in. by 1/16 in. (48-89-9204) , (1) #1 Step Drill Bit, 1/8 in. - in. by 1/32 in. (48-89-9201) , (1) Carrying Case
- Up to 4x longer bit life: optimized geometry with black oxide coating to cut faster and produce less heat
