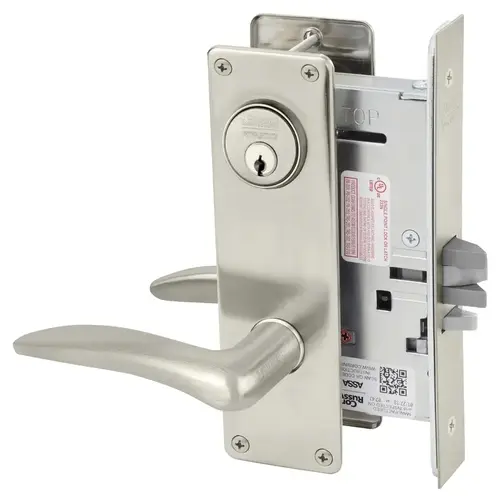

Corbin Russwin ML2042 DSN 619 LH Mortise Lock Satin Nickel Plated Clear Coated
Item #: ML2042 DSN 619 LH by Corbin Russwin
See reviews See
reviews
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See How
Watch Now
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
- Handing Handed; quick reversible. The lockset can be re-handed without disassembling the lock case;
- Door Thickness 1-3/4" (44mm) standard. Optional door thicknesses available
- Backset 2-3/4" (70mm).
- Lockcase Heavy-gauge steel, 5-7/8" (149mm) x 4" (102mm) x 15/16" (24mm). Optional: non-ferrous lockcase for corrosion resistance
- Front Heavy-gauge steel, 8" (203mm) x 1-1/4" (32mm) x -3/32" (2mm). Accommodates flat doors and doors beveled 1/8" (3mm) in 2" (51mm). Furnished 1-1/16" (27mm), optional D138, wide for 1-3/8" (35mm) doors.
- Armored Front Wrought brass, bronze or stainless steel attached by machine screws to lockcase front. ML2000HS & ML2000VR utilizes security Torx® screws.
- Latchbolt 2-piece mechanical with anti-friction insert, 5/8" (16mm) x 1" (25mm) x 3/4" (19mm) throw.
- Keys Two nickel silver standard.
- Federal Meets FF-H-106C.
- Environmental Product Declaration (EPD) certified
Thickness
1-3/4"
Strike Number
236L72018
Color
Satin Nickel Plated Clear Coated
Function
42-Entrance or Public Restroom
ANSI Function
F09 - Entry/Restroom
Hand
LH
Grade
Grade 1
Fire Rated
3 Hours {A}
Special Marks
Conventional cylinder, Fire rated 3 Hours {A}, Complies with ADA accessibility guidelines
Key(s)
Blank
Strike Width
1-1/4"
ADA Compliance
Yes
Cylinder Type
Conventional Cylinder
Lock Face Size
8" x 1-1/4"
Application
Complete Lock
Package Qty
1
Screws
Combination
Keying
0 Bitted
Bolt Protection
3/4" Latchbolt
Color Code
619/US15
Strike Type
ASA
Origin
USA
BAA Qualified
Yes
Rose/Escutcheon Design
N Escutcheon
Base Material
Brass or Bronze
Keyway
L4
Strike Height
4-7/8"
Lever/Knob Design
DS - Dirke
Entrance or Public Restroom Mortise Lock, DS Lever, N Escutcheon, Satin Nickel
The ML2000 Series Grade 1 Mortise Lock is designed to meet the rigors of high trasffic commercial, institutional, industrial and government applications. Constructed of heavy gauge steel, the lockbody features our patented quick reversible latchbolt and a 1" stainless steel deadbolt. A wide variety of trim designsand functions with a 10 year warranty lend to the ML2000's versatility and reliability, making it the ideal choice for use in offices, schools, hospitals, hotels and other high use applications.
The ML2000 series is a Grade 1 mortise lock designed to meet the rigors of high-traffic commercial, institutional, industrial and government applications.
The ML2000 Series is constructed of heavy-duty gauge steel and features a lockbody with the patented Quick Reversible latchbolt. A wide variety of trim designs and functions and a 10-year warranty lend to the ML2000's versatility and reliability, making it the ideal choice for use in offices, schools, hospitals, hotels and other high-use applications.
