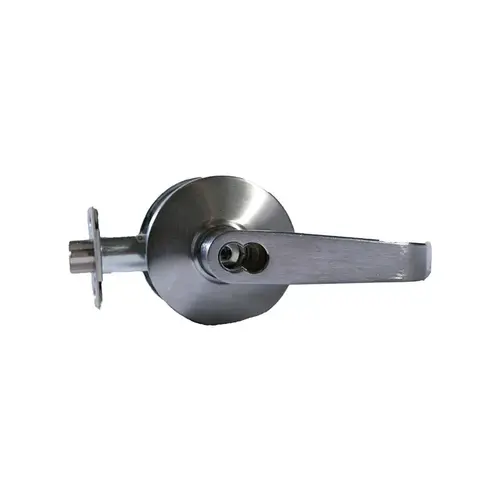

Arrow MLX87SB 26D IC MLX Series Cylindrical Lever Locks, Satin Chrome
Item #: MLX87SB 26D IC by Arrow
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
- Door Preparation – Requires standard 2-1/8" (53.97mm) bore through door.
- Backset – 2-3/4" (69.85mm)
- Door Thickness – Fits 1-3/8" (34.93mm) to 1-3/4" (44.45mm) doors standard.
- Latch – Stainless Steel 1/2" (12.7mm) throw, UL Listed, guarded latchbolt on all locking functions
- Latch Front – 1-1/8" x 2-1/4" for 2-3/4" (69.85mm) backset.
- Exposed Trim – MLX Levers are pressure cast zinc measuring 4-3/4" (120.65mm) in length. MLX Roses are wrought brass 3-11/32" (84.8mm) diameter. Total projection from face of door is 2-17/32" (64.5mm).
- Freewheeling Lever
- Warranty – Ten Year Warranty
- Handing – Non-handed
- Packaging – 6 per case
- Strike – 4-7/8" ANSI (123.83mm)
- Cylinder – Solid brass 6 pin, Arrow AR and Schlage CS Keyway, keyed different
- Keys – 2 brass keys
Base Material
Brass or Bronze
Strike Width
1-1/4"
Strike Type
ASA
Strike Number
306
Strike Height
4-7/8"
Special Marks
Small format interchangeable core, Fire rated 3 Hours {A}
Screws
Combination
Rose/Escutcheon Design
B - Rose
Product Width
2.53125"
Product Length
4.75"
Product Height
3.34375"
Package Qty
1
Lock Face Size
2-1/4" x 1-1/8"
Lever/Knob Design
S - Sierra
Latch Type
Dead Latch (Guarded)
Latch Number
R21
Latch Backset Dim
2-3/4"
Bolt Protection
1/2"
ANSI Function
F84 - Classroom
Package Width
6.875"
Package Volume
199.8046875
Package Length
7.5"
Package Height
3.875"
Fire Rated
3 Hours {A}
Cylinder Type
SFIC Less Core-Small Format Prep
Function
87-Classroom
Color Code
626/US26D
Color
Satin Chrome
Hand
Not Handed
Thickness
1-3/8" - 1-3/4"
Grade
ANSI/BHMA Grade 2
Finish
Satin Chrome
Backset
2-3/4", 1-1/8" x 2-1/4", Square Corner
Finish Description
Satin Chrome
Lever Style
SB-Sierra
Rose/Escutcheon Trim
Round Rose
Product Type
Cylindrical Lock
Strike
ANSI, 1-1/4" x 4-7/8", 1-1/4" Lip, Square Corner
Projection
2.5313
Lever Length
4.7500
Door Thickness
1-3/8" - 1-3/4"
Bore Size
2.1250
ADA Approved
False
MLX Series Cylindrical Lever Locks
The MLX Series is a robust Grade 2 lockset featuring a FreeWheeling Lever for abuse resistance, two screw lockset install for quick installation and a 10 Year Mechanical Warranty. The perfect solution for replacing or upgrading lockets in commercial applications.
Certification:
- Arrow MLX Series Cylindrical Lever Locks are BHMA Grade 2 Certified, ANSI/BHMA A156.2, Series 4000
- All Arrow MLX Series Locks are U.L. and c.U.L. list for use on 3 hour, A label or lesser doors
- Meets American with Disabilities Act Requirements
- Door Preparation– Requires standard 2-1/8" (53.97mm) bore through door.
- Backset– 2-3/4" (69.85mm)
- Latch– Stainless Steel 1/2" (12.7mm) throw, UL Listed, guarded latchbolt on all locking functions
- Latch Front– 1-1/8" x 2-1/4" for 2-3/4" (69.85mm) backset
- Exposed Trim– MLX Levers are pressure cast zinc measuring 4-3/4" (120.65mm) in length. MLX Roses are wrought brass 3-11/32" (84.8mm) diameter. Total projection from face of door is 2-17/32" (64.5mm).
- Freewheeling Lever
- Warranty– Ten Year Warranty
- Handing– Non-handed
- Packaging– 6 per case
- Strike– 4-7/8" ANSI (123.83mm)
- CylinderSolid brass 6 pin, Arrow AR and Schlage CS Keyway, keyed different
- Keys- 2 brass keys
