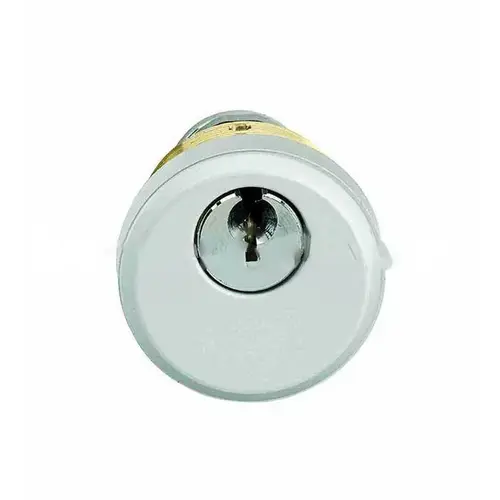

Mortise Cylinder for MS Lock; 4900; and 2190 Clear Anodized Aluminum Finish

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

Adams Rite 403601628 Mortise Cylinder for MS Lock; 4900; and 2190 Clear Anodized Aluminum Finish

Item #: 403601628 by Adams Rite

See reviewsSee reviews
See reviews summary
In Stock

$51.72

/each
SAVE UP TO 5.17
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 7 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Volume Pricing

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features
  • Mortise Cylinder
  • For MS Locks
  • Standard 1" Long, 1-5/32" Cylinder
  • Five-Pin Tumbler Security
  • Warranted Free From Defects In Workmanship And Materials Under Normal Use And Service

Finish

Clear Anodized Aluminum

Series

Parts/Accessories

Finish Description

Satin Aluminum

Product Type

Exit Device Part/Accessory

Warranty

1 Year From Date of Purchase.

Aluminium Bottle Contents

Swinging

ProductType

Manual

Manufacturer Parent

Assa Abloy

For Use With

MS Locks, Deadlatches, 2190

Function

Part/Component

Sub-Series

4036-01-628

ADA Compliant

No

Cylinder Type

Mortise

Function Family

Part/Component

Color Code

628/US28

Keying Type

Keyed Different

Finish Family

Aluminum

Product Overview
4036 & 4066Mortise Cylinder and Thumbturn

The 4036 Mortise Cylinder provides five-pin security with most Adams Rite deadlocks or deadlatches. The 4066 Thumbturn operates deadlocks or deadlatches without a key.

Function: 4036:
  • A standard 1" (25.4 mm) length, 1 5/32" (29.4 mm) diameter cylinder with five-pin tumbler security. Designed to operate any Adams Rite deadlock or deadlatch requiring a mortise cylinder. Close tolerance manufacturing achieve set screw grooves and cam geometry that are true on their respective centerlines. This ensures proper mating and operation with the locking or latching mechanism. Select cam to suit particular Adams Rite deadlock or deadlatch.
4066:
  • To operate deadlock or deadlatch without key. Interchanges with standard1" (25.4 mm) length, 1 5/32" (29.4 mm) diameter mortise cylinder. Cams are available to suit the particular Adams Rite deadlock or deadlatch. See next page for cam specifications.
Features: Trim Ring:
  • Furnished. 1/4" (6.4 mm) thick, suitable for 1 3/4" (44.5 mm) thick doors. Available by special order for other door thicknesses.
Keying:
  • All cylinders furnished with two keys per cylinder. Available in keyed different (KD), or keyed alike pairs (KA2). Keyed alike 50 are available by special order in quantity of 50 cylinders only
Standard Package:
  • Individually packed with trim ring. 4036 furnished with keys.
Shipping Weight:
  • 1/2 lb (0.23kg)
Cylinders by Others:
  • Adams Rite deadlocks and deadlatches are designed to accept standard 1" (25.4 mm) length, 1 5/32" (29.4 mm) diameter mortise cylinders of all popular makes. This means that the entrance can be keyed to match the system used throughout the building on other types of doors. Care must be taken, however, to specify the proper cam for each type of lock, as these are not generally interchangeable. The cam shapes shown are available from the listed cylinder manufacturers and will be supplied by them with the cylinder when specified or available separately. Because of variations in the attachment of cams to cylinders and other construction differences, it is advisable to NOT attempt using one manufacturer's cylinder with another manufacturer's cam.
Finishes:
  • 628 - Clear Anodized
  • 335 - Black Anodized
  • 313 - Dark Bronze Anodized
  • 130 - To match 628 Clear Anodized
