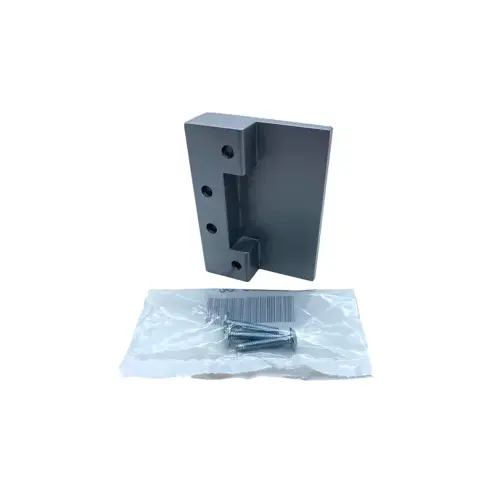

Mounting Bracket (1 Step) for COR52 Coordinator, 689/SP28 Satin Aluminum (1 Each)

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

IVES MB1 SP28 Mounting Bracket (1 Step) for COR52 Coordinator, 689/SP28 Satin Aluminum (1 Each)

Item #: MB1 SP28 by IVES

UPC #: 044074994810

See reviewsSee reviews
See reviews summary
In Stock

$35.40

/each
SAVE UP TO 3.54
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 808 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Volume Pricing

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features
  • Part of the Schlage Family of Products
  • All Mounting Hardware Included
  • Made with Durable Materials
  • Easy Installation
  • Limited 1 Year Warranty

Finish

Aluminum Painted

Handing

Non Handed

Series

Parts/Accessories

Color

Aluminum Painted

Color Code

689/US28

Package Qty

1

Base Material

VARIES

Finish Description

Aluminum Painted

Product Type

Door Accessory

Alternate Part Number-1

169484

Product Length

3 Inch

Product Width

4 Inch

ADA Compliant

No

Finish Family

Aluminum

Product Material

Aluminum A380

Standards

ANSI/BHMA A156.3 Type 21A

Product Thickness

15/16 Inch

Features

Stop Mounted Hardware will Need to be Lowered to Compensate for the Height of the Coordinator and Mounting Bracket

Function

Mounting Bracket

Manufacturer Parent

Allegion

Sub-Series

DTA_Accessory_Hardware_ives_17

Height

1

Length

4

Width

3

Dimension

1-5/8" x 3" x 4"

Material

Aluminum

Manufacturer Warranty

Limited 1 year warranty

Hazardous Material

No

No of inners

1

Product Overview
MB1/MB2Mounting BracketFeatures:
  • Allows stop mounted hardware to be properly installed without damaging the COR coordinator, such as a parallel arm closer or a non-fire-rated surface vertical rod strike
  • Stop mounted hardware will need to be lowered to compensate for the height of the coordinator and mounting bracket.
Certifications:
  • Meets ANSI A156.3 Type 21A
Material Substrate:
  • Aluminum A380
Specifications: Jamb Depth:
  • MB1 - 4 3/4" Min
  • MB2 - 4 3/4" Min
Stop Width:
  • MB1 - Over 2 1/2"
  • MB2 - Up to 2 1/2"
Dimensions:
  • MB1 - 4" W x 3" D x 15/16" T
  • MB2 - 4" W x 3 1/4" D x 1 5/8" T
Finishes:
  • BLK - Black
  • SP28 - Aluminum
  • USP - USP Primed
