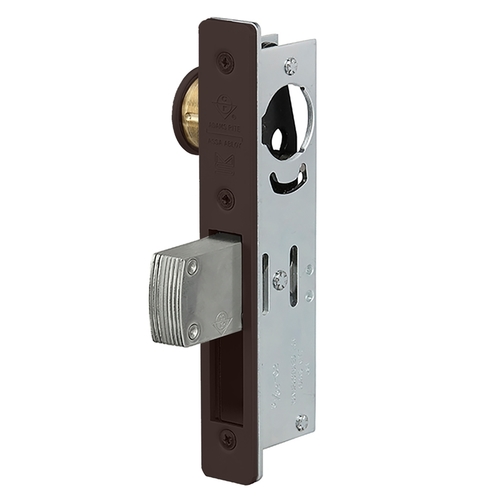

Adams Rite MS1850S-310-313 MS1850S DEADLOCK 1-1/8 IN. BACKSET ANSI Stainless Steel
Item #: MS1850S-310-313 by Adams Rite
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
- Straight Bolt Deadlock
- For Use in Single Leaf Narrow Stile Doors
- Laminated Steel Bolt
- 6-7/8" Faceplate
- Warranted Free From Defects In Workmanship And Materials Under Normal Use And Service
Finish
Dark Bronze Anodized
Function
Deadlock
Backset
1-1/8 Inch
Color Code
313
Color
Stainless Steel
Warranty
1 Year From Date of Purchase.
Pack Size
1
Door Locks & Knobs Product Type
Mortise Locks
UNSPSC
46171500
Product Type
Storefront Lock
Aluminium Bottle Contents
Swinging
ProductType
Manual
ADA Compliant
No
Finish Family
Dark Bronze
Included Components
Faceplate; Mounting Screws
Deadbolt Size
5/8" x 1-3/8" x 2-7/8"
Bolt Type
Straight Bolt
Corrosion Resistant
Yes
Faceplate Dimension
1" x 6-7/8"
Cylinder Type Used
Accepts Standard 1" Length, 1-5/32" Diameter Mortise Cylinder With MS Cam (4036 Mortise Cylinder or 4066 Thumbturn)
Case Dimensions
1" x 6" x 1-25/32"
Function Family
Storefront Deadlock
For Door Type
Aluminum Doors; Swinging Doors
Deadbolt Material
Eight Ply Laminated Stainless Steel
Features
The Length of This Bolt Provides Maximum Security for a Single Leaf Door; Key can be Removed only When Bolt is in a Positively Locked or Unlocked Position
Hand
Non-Handed
Handing
Non-Handed
Manufacturer Parent
Assa Abloy
Sub-Series
CL_Storefront_Locks_adams_rite_190
Deadbolt Throw
1-3/8 Inch
Finish Description
Dark Bronze Anodized
Faceplate Shape
Flat
Alternate Part Number-1
158648
The MS1850S Deadlock utilizes a laminated stainless steel bolt, activated by a pivot mechanism to provide maximum security for a single leaf narrow stile door. Function - A huge bolt of laminated stainless steel, nearly three inches long, activated by an uncomplicated pivot mechanism, has made this basic MS® Deadlock the standard of the narrow stile door industry. The length of this bolt provides maximum security for a single leaf door, even a very tall and flexible one or an installation where the gap between the door and jamb is greater than it should be. Operation 360° turn of key or thumbturn throws or retracts the counterbalanced bolt. Key can be removed only when bolt is in a positively locked or unlocked position. Lock accepts any standard 1-5/32" diameter mortise cylinder or thumbturn from either or both sides. Cylinder must have MS® dimensioned cam.
Specifications: Cylinder Backset:- 7/8", 31/32", 1-1/8", or 1-1/2" only.
- Steel with corrosion-resistant plating, measures 1" x 6" x depth. (Depth varies by backset.)
- 5/8" x 1-3/8" x 2-7/8" with 1-3/8" throw. Eight-ply laminated stainless steel.
- Center ply has alumina-ceramic core to defeat any hacksaw attack, including rod-type "super" hacksaws.
- Measures 1" x 6-7/8"
- Trim plate, box strike, and armored strike are available separately.
- MS1850S Deadlocks are operable by any standard 1-5/32" diameter mortise cylinder with MS® cam dimensioned as shown.
- Cylinders with MS® cams can be readily obtained from most cylinder manufacturers.
- For jambs too narrow to accept the long bolt, the MS1850S-050 offers a shorter bolt with hook shape to provide equal security against door-prying attempts. 1850S-020 short throw without hook is also available.
- Second and third point locking bolts are available for pairs of doors. All use any make standard mortise cylinder and thus can be keyed into systems with other types of doors.
- “SCHOOLHOUSE” version, also available, is modified so that operation from inside is “unlock only”. This lock is handed and must be specified LH or RH. Specify Series SCH1850S. Same faceplate and backset options as Series MS1850S.
- Operation from inside, with standard Adams Rite 4066 Turn or with 4550 Deadlock Lever. For wood or hollow metal, see MS1850SN.
