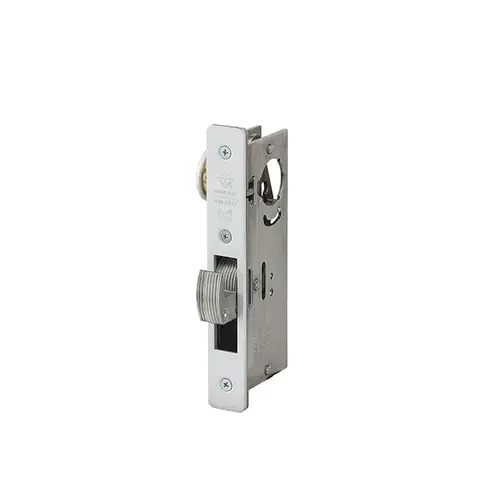

Adams Rite MS1950-310-628 MS1950 Series MS Deadlock, Satin Aluminum Clear Anodized
Item #: MS1950-310-628 by Adams Rite
See reviewsSee reviews
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See How Watch Now
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
Color
Satin Aluminum Clear Anodized
Package Qty
1
Color Code
628/US28
Backset
1-1/8 Inch
Product Type
Storefront Lock
Series
MS1950 Series
Function
Deadlock
Deadbolt Throw
1-3/8 Inch
Finish Description
Satin Aluminum
Faceplate Shape
Flat
ADA Compliant
No
Finish Family
Aluminum
Included Components
Machine Screws
Deadbolt Size
5/8" x 1-3/8" x 2-7/8"
Bolt Type
Straight Bolt
Faceplate Dimension
1" x 6-7/8"
Cylinder Type Used
Accepts Standard 1" Length, 1-5/32" Diameter Mortise Cylinder With MS Cam (4036 Mortise Cylinder or 4066 Thumbturn)
Case Dimensions
1" x 6" x 1-25/32"
Function Family
Storefront Deadlock
For Door Type
Aluminum Doors; Swinging Doors
Deadbolt Material
Eight Ply Laminated Stainless Steel
Features
Activated by a Pivot Mechanism; Key can be Removed only When Bolt is in a Positively Locked or Unlocked Position
Hand
Non-Handed
Handing
Non-Handed
Manufacturer Parent
Assa Abloy
Sub-Series
CL_Storefront_Locks_adams_rite_278
Product Overview
MS1850S-050 SeriesMS® Deadlock
The MS1850S-050 Deadlock utilizes a laminated stainless steel hookbolt, activated by a pivot mechanism to provide maximum security for a sliding narrow stile door. Function - The MS1850S-050 Deadlock answers the security need of sliding glass doors in commercial, industrial, and institutional buildings. The mechanism is identical to the widely used Maximum Security swinging door lock, except that the massive laminated bolt is provided in a hook shape to resist the parting motion of sliding door and jamb. The over-center MS locking action assures that forced entry attempts to pry the door in any direction, up, down, or sideways will be defeated. Operation 360° turn of key or thumbturn throws or retracts the counterbalanced bolt. Key can be removed only when bolt is in a positively locked or unlocked position. Lock accepts any standard 1-5/32" diameter mortise cylinder or thumbturn from either or both sides. Cylinder must have MS® dimensioned cam.
Features: Cylinder Backset:- 7/8", 31/32", 1-1/8", or 1-1/2" only.
- Steel with corrosion-resistant plating, measures 1" x 6" x depth. Depth varies by backset.
- 5/8" x 1-3/8" with 13/16" throw. Eight-ply laminated stainless steel. Center ply has alumina-ceramic core to defeat any hacksaw attack, including rod-type "super" hacksaws, while hook shape repels pry bar attempts to "spread" the door from its jamb or lift it off its track.
- Measures 1" x 6-7/8".
- Trim plate, box strike, and armored strike are available separately.
- MS1850S-050 Deadlocks are operable by any standard 1-5/32" diameter mortise cylinder with MS® cam dimensioned as shown. Cylinders with MS® cams can be readily obtained from most cylinder manufacturers. See CYLINDERS section for cylinder make, thumbturn and trim ring information.
- Cylinder backset and faceplate finish and shape
- (radiused, flat or bevel cross-section to match door nose) must be specified.
- This lock is handed and must be specified LH or RH.
- Same faceplate and backset options as Series MS1850S-050.
- Operation from inside, with standard Adams Rite 4066 Trim or with 4550 Deadlock Lever.
- For wood or hollow metal, see MS1850SN.
- Individually boxed with machine screws for mounting.
- Cylinders and/or thumbturns available separately.
- 1-1/2 lbs
- [0.68 kg]
