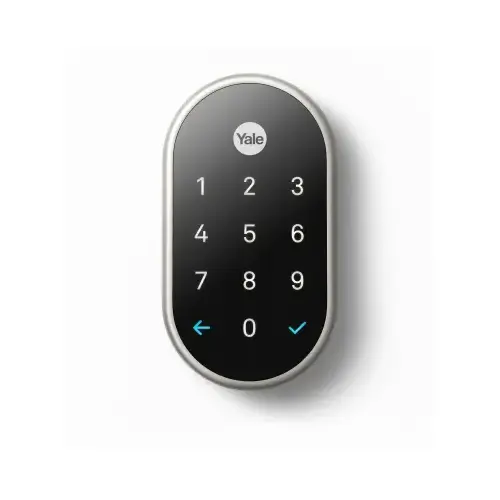

Nest x Yale Weave Lock Bundled with Nest Connect Satin Nickel Finish

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

Yale Real Living RBYRD540WV619 Nest x Yale Weave Lock Bundled with Nest Connect Satin Nickel Finish

Item #: RBYRD540WV619 by Yale Commercial

Brand: Yale Real Living

UPC #: 81023007177

See reviewsSee reviews
See reviews summary

$498.60

/each
SAVE UP TO 49.86
Buying in bulk
Special Order*Usually ships in 1-2 weeks

Finish: Satin Nickel

Buy in Bulk & Save - See HowWatch Now
Get Custom Quote

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
WARNING: This Product May Contain Chemicals Known to the State of California to Cause Cancer or Reproductive Harm. To Learn More Visit P65Warnings.ca.gov
Features
  • Tamper-Proof Key Free, Connected Deadbolt Lock
  • Access history. Get alerts when someone locks and unlocks the door.
  • Auto-lock. It can lock automatically when Nest knows you're away.
  • Remote Control from the Nest App
  • Colors. Satin Nickel, Oil Rubbed Bronze, Polished Brass.
  • Know Who's Coming In and Out of Your Home
  • Create Up to 20 Unique Passcodes for Family and Friends
  • Keyless deadbolt. It’s secure and tamper-proof. No lost keys. No picked locks.
  • One-touch locking. Just tap to lock on your way out.
  • Touchscreen
  • 4 AA Alkaline Batteries Inlcuded.
  • Remote access. Lock and unlock the door with the Nest app. Without a key.
  • Unique passcodes. Give passcodes to family and guests. Set schedules to let them in.
  • Self Handing: (Please Hand While in Unlocked Position)
  • Grade 2: ?A156.36 ANSI/BHMA
  • Works with the Nest Secure. Unlock the door, and the alarm disarms automatically.

Finish

Satin Nickel

Series

Real Living

Height

11.73

Length

6.10

Width

5.75

Hazardous Material

No

Country Origin Code

CN

Grade

ANSI/BHMA Grade 2

Backset

2-3/8 Inch or 2-3/4 Inch

Warranty

Lifetime Limited Warranty for Finish/Mechanical; 2 Year for Electronics

Operating Temperature

-22° to 140°F (Outside); 5° to 158°F (Inside)

Color Code

619/US15

Works with

Nest Secure; Hey Google

Function

540-Touchscreen Deadbolt

Handle Type

Self Handing

input type

Touchscreen

Finish Description

Satin Nickel

Product Height

4-1/2"(Exterior); 7.03"(Interior)

Product Width

2.59"(Exterior); 2.7"(Interior)

Strike Type

1-1/8" x 2-3/4"

ADA Compliant

No

Finish Family

Satin Nickel

Included Components

Nest x Yale Lock; Nest Connect; Deadbolt Strike and Mounting Hardware; (4) AA Batteries; Installation Manual and Door Template

Low Battery Indicator

Yes

Product Depth

0.80"(Exterior); 2.02"(Interior)

Standards

A156.36 ANSI/BHMA; RoHS Compliant

For Door Thickness

1-3/8" to 2-1/4"

Function Family

Touchscreen Deadbolt

Battery Type

(4) AA

Features

Tamper-Proof Key Free, Connected Deadbolt Lock; Remote Control From the Nest App; Never Hide a Key Again, Create Unique Entry Codes for the People You Trust; Create Upto 20 Unique Pass Codes

Product Type

Home Solution

Manufacturer Parent

Assa Abloy

Sub-Series

RL_Keypad_Touchscreen_Locks_yale_residential_1

Material

Cast Zinc

Door Thickness

1-3/8" to 2-1/4"

Strike

Deadbolt Strike

Manufacturer Warranty

Limited Lifetime Mechanical and Finish Warranty and Limited 1 Year Electronic Warranty

Keypad Type

Touchscreen

Door Range

1-3/8" to 2-1/4"

Strike Dimension

1-1/8" x 2-3/4"

Cross Bore Size

2-1/8" Bore

Finish code

619

Electronic Communication Type

Nest

Latch Faceplate Dimension

1" x 2-1/4"

No of inners

1

Substrate Type

Metal

Collection

Weave

Device Type

Bundled with Nest Connect

Cross Bore

2-1/8"

Edge Bore

1"

Door Thickness Range

1-3/8" to 2-1/4"

Reader Type

Touchscreen

Door Strike

1-1/8" x 2-3/4"

Product Overview

Yale Residential YRD540 Nest x Yale Weave Lock - Key Free Touchscreen Keypad Deadbolt

Nest x Yale Lock combines Yale s 180 years of experience making the world s strongest locks with Nest s industry-leading connected home technology. The result? A lock that s secure, convenient and connected.

FEATURES & BENEFITS

Never worry about keys getting lost, copied or stolen again.
Create passcodes for friends and family and revoke them anytime.
Alerts keep you posted on comings and goings.
Forget to lock the door? No problem. The Nest x Yale Lock can lock itself.
Lock or unlock from your phone, from anywhere.
Hands full? Lock the door with a quick tap of the lock screen.
