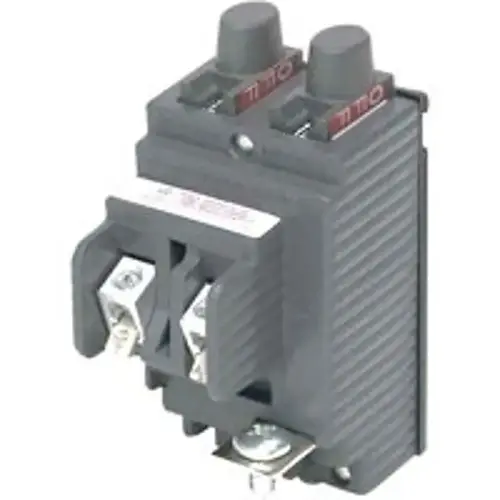

Pushmatic UBIP1515 Circuit Breaker, Tandem, Type UBIP, 15/15 A, 1 -Pole, 120/240 V, Standard Trip, Plug Mounting Black
Item #: UBIP1515 by Connecticut Electric, Inc
UPC #: 094925031102
See reviewsSee reviews
Use Code: SAVEBIG2025 for Extra 10% Off
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
Voltage
120
Warranty
5 Years
Certifications
ETL
Amperage
15 Amp
Phase
1
Breaker Type
Tandem
Certifications and Listings
ETL Listed
Circuit Breaker Type
Tandem
Maximum Amperage
15
Number of Poles
1
Product Depth (in.)
1.84
Product Height (in.)
2.92
Product Width (in.)
1.5
Pack Size
1
UNSPSC
39121601
Terminal Type
Lug
Interrupt Rating
10 kA
Operating Frequency
50/60 Hz
Trip Type
Standard
Nomenclature
UBIP1515 PUSH THN BREAKER 15A
Current Rating
15/15 A
Mounting Type
Plug
Dimensions
2.92 in L x 1.5 W x 1.84 H
Type
Tandem Type UBIP
Wire Size
14 to 8 AWG
Number of Phases
1
Frame Size
1-Space
Width (in)
1.5
Certification
ETL/UL Listed
Mount Type
Plug-In
Interruption Type
Standard Trip
Material
Other
For Use With
Pushmatic and Bulldog Load Centers
Package Quantity
1
UL Listed
No
ADA Compliant
No
MADE IN THE USA
No
Terminal Connection Type
Lug
Tripping Mechanism
Other
Assembled Product Depth
1.84 in.
Assembled Product Height
2.92 in.
Assembled Product Width
1.5 in.
GSA Approved
No
Breaking Capacity
10 kA
AbilityOne
No
TAA/BAA Compliant
No
Space Required
1
Product Overview
CIRCUIT BREAKER 2P DPLX 15/15A
Specifications:
Specifications:
Application: For use in Pushmatic and Bulldog load centers
Suitable for: Pushmatic and Bulldog load centers
For Pushmatic load centers. SWD Rated. 120 VAC, 10,000 AIC. 1-1/2 in space per breaker.
