Office Cylindrical Lock Grade 2 with L Lever and K Rose and ASA Strike and LA Keyway Satin Chrome Finish

Roll over image to zoom in

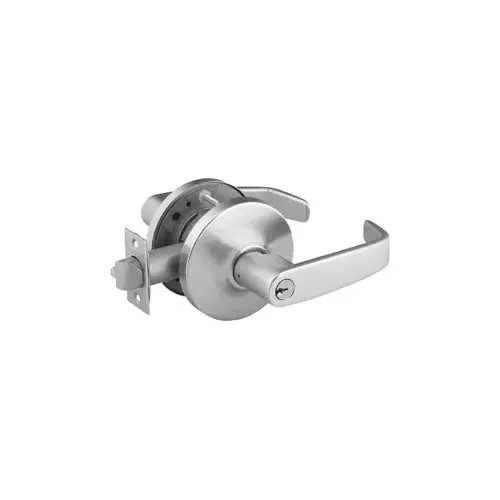

Sargent 28-65G05 KL 26D Office Cylindrical Lock Grade 2 with L Lever and K Rose and ASA Strike and LA Keyway Satin Chrome Finish

Item #: 28-65G05 KL 26D by Sargent

See reviewsSee reviews
In Stock

$301.22

/each
SAVE UP TO 30.12

Buying in bulk

QUICK SHIPPING*Usually ships in 1 business day
QTY
+
+ Add to Wishlist
Buy in Bulk & Save - See How Watch Now

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Features
  • For Doors: 1-3/8" (35mm) to 1-3/4" (44mm) only
  • Backset: 2-3/4" (70mm) standard; 2-3/8" (60mm) optional (20- Prefix)
  • Cylindrical Housing: Steel zinc dichromate finish
  • Front: Wrought brass and stainless steel;
  • 2-1/4" (57mm) x 1-1/8"(29mm)
  • Strike: 600 Curved Lip, Brass or Stainless Steel Standard, 808 ANSI Curved Lip available (28- prefix), 505 Full Lip strike available (14- prefix)
  • Hand: Universal, not handed
  • Latch: Brass 1/2" (13mm) throw
  • Keys: Two, nickel silver
  • Cylinder: Brass, 6 pin, LA keyway standard
  • Finishes : 3, 4, 10, 10B, 26, 26D
  • (No Split Finish)
  • Door Prep: ANSI A115.2 (161) Modified
  • Minimum Stile: 4-1/2" (114mm)

Finish

Satin Chrome

Function

G05-Entry/Office

Series

6500 Line

Design

L Lever and K Rose

Strike

ANSI, 1-1/4 Inch x 4-7/8 Inch, 1-1/4 Inch Lip, Square Corner

Backset

2-3/4 Inch

Keying

Keyed Different

Cylinder Type

Conventional Cylinder

Fire Rated

3 Hours {A}

Origin

Korea

Package Height

3.625"

Package Length

7.25"

Package Volume

180.6835938

Package Width

6.875"

ANSI Function

F81

Bolt Protection

1/2"

Case Height

9"

Case Volume

2801.25

Case Width

15"

Dust Box

None

Key(s)

Cut

Latch Backset Dim

2-3/4"

Latch Number

05-2182

Latch Type

Deadlocking/Guarded

Lever/Knob Design

L - Lever

Lock Face Size

2-1/4" x 1-1/8"

Package Qty

1

Rose/Escutcheon Design

K - Rose

Screws

Combination

Special Marks

Conventional cylinder, Fire rated 3 Hours {A}

Strike Height

4-7/8"

Strike Number

808 ANSI Strike

Strike Type

ANSI Curved Lip

Strike Width

1-1/4"

Base Material

Brass or Bronze

Grade

ANSI/BHMA Grade 2

Thickness

1-3/8" - 1-3/4"

Application

Medium Duty Cylindrical

Hand

Not Handed

Color Code

626/US26D

Case Length

20.75"

Keyway

Sargent LA

Finish Description

Satin Chrome

Lever Style

L-Lever

Keyblank Grouping

SRGT-LA-6-1

Rose/Escutcheon Trim

K-Rose

Product Type

Cylindrical Lock

Projection

2.3750

Lever Length

5.0000

Door Thickness

1 3/8" - 1 3/4"

ADA Approved

False

Keying Charges

CCAM

Handing

Reversible

Handle Type

Lever

Rose Diameter

3-3/8 Inch

Latch Throw

1/2 Inch

Standards

ANSI/BHMA A156.2 (2017) Series 4000 Grade 2; ANSI/BHMA A156.115; UL/cUL Certified to UL10C/ULC-S104 for 3 Hour Doors; ANSI/UL 10C, Positive Pressure Fire Test of Door Assemblies; ANSI A117.1

Cylinder Type Used

Conventional

Front Material

Stainless Steel; Wrought Brass

Function Description

Turn button on inside locks outside knob/lever until unlocked by key or by rotating inside knob/lever. Inside knob/lever always free.

Front Size

2-1/4" x 1-1/8"

Function Family

Entry/Entrance/Office

Strike Lip

1-1/4 Inch

Product Projection

2-3/8 Inch

Trim Material

Solid Cast (Lever); Wrought (Rose)

Minimum Stile Width

4-1/2 Inch

Features

Deadlocking Latch; Latch by Either Lever Unless Outside Lever is Locked by Push/Turn Button in Inside Lever; Push Button Released by Key Outside or Lever Inside; Key Retracts Latch When Outside Lever is Locked

Strike Size

4-7/8" x 1-1/4"

Cylinder Material

Brass

ADA Compliant

YES

Finish Family

Satin Chrome

Manufacturer Parent

Assa Abloy

Lever Length-Inches

5 Inch

Latch Corner

Square

Knob/Lever Size

4-7/8 Inch

Latch Bolt Material

Brass

Lever Style Family

Straight Return Lever

Sub-Series

CL_Cylindrical_Locks_sargent_324

Alternate Part Number-1

151179

Product Overview
6500 SeriesCylindrical Lever Lock

Designed for increased usability, the 6500 Line standard duty key-in-lever lock exceeds ANSI/BHMA Grade 2 standards. It installs easily and is available in eight functions and six different finishes to match existing facility aesthetics. A standard duty key-in-lever lock designed to exceed the requirements of ANSI A156.2, Series 4000 and Grade 2

Certification Compliance: ANSI/BHMA:
  • Meets ANSI A156.2 Series 4000 — Grade 2
UL:
  • UL listed to U.S.A. and Canadian safety standards Listed for 3 Hour Doors
Positive Pressure:
  • Meets ANSI/UL 10C, Positive Pressure Fire Test of Door Assemblies
ADA:
  • All levers conform to ADA requirement for barrier-free accessibility
California Code:
  • Levers conform to California Administrative Code Title 19 and 24
Hurricane Code:
  • All individual components of a total door opening are required to comply with each code. Refer to the SARGENT Website (www.sargentlock.com) for specific code compliance listings for both the lock hardware and other door components
Specifications: For Doors:
  • 1-3/8" (35mm) to 1-3/4" (44mm) only
Backset:
  • 2-3/4" (70mm) standard
Cylindrical Housing:
  • Steel zinc dichromate finish
Front:
  • Wrought brass and stainless steel 2-1/4" (57mm) x 1-1/8" (29mm)
Strike:
  • 800 Curved Lip, Brass or Stainless Steel Standard
Hand:
  • Universal, non-handed
Latch:
  • Brass 1/2" (13mm) throw
Keys:
  • Two, nickel silver
Cylinder:
  • Brass, 6- pin, LA keyway standard
Finishes:
  • 3, 4, 10, 10B, 10BE, 26, 26D
Door Prep:
  • ANSI A115.2 (161) Modified
Minimum Stile:
  • 4-1/2" (114mm)
